RPE-2006F01L

Power Line Filter Modules Overview

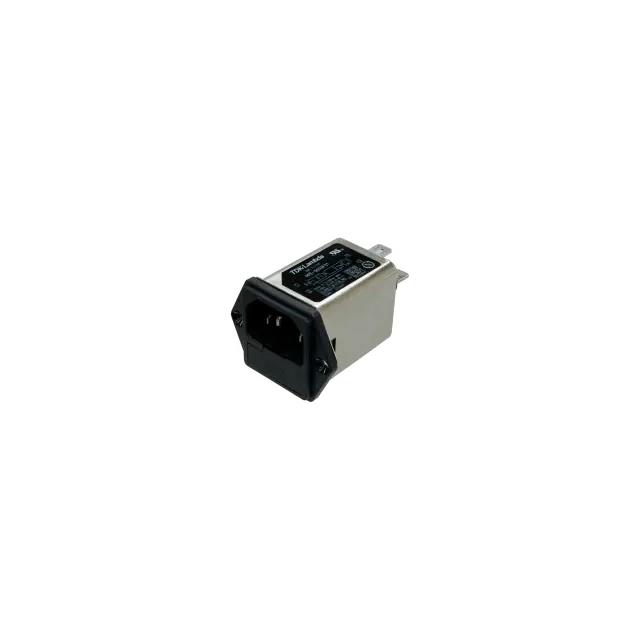

The RPE-2006F01L is a single-phase EMC/EMI power line filter module manufactured by TDK-Lambda. It features a rated voltage of 250V and a rated current of 6A. The unit operates within a frequency range of 47Hz to 63Hz and utilizes a single-stage filtering design. Physical connectivity is provided via an IEC 320-C14 connector interface with quick-connect terminals for circuit board mounting.

Power Line Filter Modules Feature Summary

• Integrated single fuse configuration
• IEC 320-C14 input connector interface
• Quick-connect terminal termination style

Power Line Filter Modules Applications

• Single-phase AC power entry modules
• EMC/EMI noise suppression in electronic equipment
• Power line filtering for industrial devices

Power Line Filter Modules Procurement Notes

Verify the specific part number against official TDK-Lambda documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with the target system's voltage, current requirements, and mounting constraints before procurement.

Power Line Filter Modules Selection Notes

Select this component for applications requiring a compact, single-stage EMI filter with standard IEC inlet integration. Confirm that the 6A current rating and 250V voltage specification align with the system's operational parameters and safety standards.

Power Line Filter Modules Part Context

This component belongs to the TDK-Lambda power line filter portfolio, designed for electromagnetic interference suppression. It serves as a critical interface between the AC mains supply and sensitive electronic loads, ensuring compliance with emission standards.

Power Line Filter Modules Replacement Considerations

Consult official TDK-Lambda substitution guides for verified equivalent models. Do not assume cross-compatibility with generic filters without verifying pinout, electrical ratings, and certification status.
