Product Detailed Parameters
- Description：LINE FILTER 400VAC 5A CHASS MNT
- Series：RPM6000
- Mfr：Astrodyne TDI
- Package：Box
- Filter Type：DC
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：400V
- Current：5:00 AM
- Frequency - Operating：-
- Applications：-
- Approval Agency：-
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M5)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
Download product information
Overview

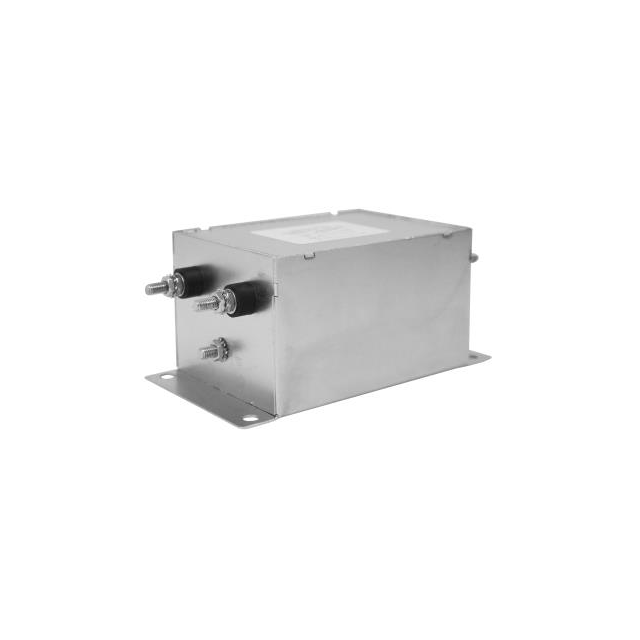

The RPM6000-5-S is a MIL/COTS DC EMI power line filter manufactured by Astrodyne TDI. It belongs to the RPT5510 series and is designed for chassis mounting with stud termination. The component operates within a voltage rating of 400 VDC and supports a current rating of 5 A. Physical dimensions are 94 mm in length, 56 mm in width, and 46 mm in height. It functions reliably across an operating temperature range from -40 C to +70 C.
Feature Summary
- Designed specifically for military and commercial off-the-shelf (COTS) applications requiring DC EMI filtering.
- Utilizes a robust chassis mount configuration with stud termination for secure installation.
- Engineered to operate effectively in demanding thermal environments ranging from -40 C to +70 C.
Applications
- Military electronic systems
- Commercial off-the-shelf (COTS) equipment
- DC power line noise suppression
Procurement Notes
Verify availability status as supply may be restricted or limited. Confirm that the specific part number matches project requirements for DC voltage ratings and current capacity. Ensure compatibility with chassis mounting hardware and stud termination interfaces before procurement.
Selection Notes
Select this component when a dedicated DC EMI filter is required for MIL/COTS standards. Consider the 400 VDC rating and 5 A current capacity against system load requirements. Verify that the physical footprint and stud termination method align with the enclosure design and wiring constraints.
Part Context
This unit is part of the RPT5510 series from Astrodyne TDI, specialized for high-reliability DC power conditioning. It addresses electromagnetic interference in sensitive military and commercial applications where standard AC filters are unsuitable due to DC voltage specifications.
Replacement Considerations
No public confirmed substitute part numbers are available for this specific model. Consult manufacturer documentation for potential cross-references within the same series if exact replacement is unavailable.
