RPM6200-10-S

Power Line Filter Modules Overview

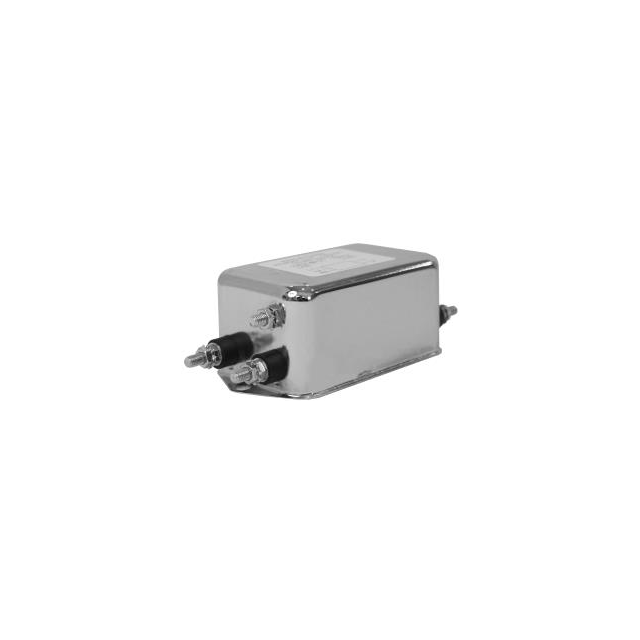

The RPM6200-10-S is a MIL COTS DC high-performance EMI power line filter manufactured by Astrodyne TDI. It features a single-phase configuration with non-grounded returns and supports a current rating of 10A at 300VAC. The unit utilizes a two-stage filtering topology to ensure effective noise suppression in demanding environments. Designed for chassis mounting via stud terminals, it operates within a temperature range of -40°C to +70°C and functions at frequencies between 47Hz and 400Hz. The component complies with UL, CSA, and EN standards.

Power Line Filter Modules Feature Summary

• MIL COTS qualified for rugged operational environments
• Two-stage filtering architecture for enhanced attenuation
• Non-grounded return configuration for specific circuit requirements

Power Line Filter Modules Applications

• Military avionics systems
• Defense ground support equipment
• Ruggedized industrial power supplies

Power Line Filter Modules Procurement Notes

Verify the specific revision level and compliance documentation against the latest manufacturer datasheet before integration. Confirm that the non-grounded return specification aligns with your system's grounding strategy. Ensure mechanical clearance accommodates the chassis mount dimensions and stud terminal requirements for proper installation.

Power Line Filter Modules Selection Notes

Select this component when military-grade reliability and high-performance EMI suppression are required for DC power lines. The non-grounded return design distinguishes it from standard grounded filters. Verify that the 10A current rating and 300VAC voltage limit meet the application's electrical demands without derating issues.

Power Line Filter Modules Part Context

This part belongs to the RPM6200 series, which specializes in MIL COTS DC power line filters. The series is engineered for applications requiring robust electromagnetic interference protection in harsh conditions. The 'S' suffix typically denotes a specific mounting or terminal configuration within the product family.

Power Line Filter Modules Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
