Product Detailed Parameters
- Description：LINE FILTER 400VAC 50A CHASS MNT
- Series：RPM6600
- Mfr：Astrodyne TDI
- Package：Box
- Filter Type：DC
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：400V
- Current：50 A
- Frequency - Operating：-
- Applications：-
- Approval Agency：-
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M5)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
Download product information
Overview

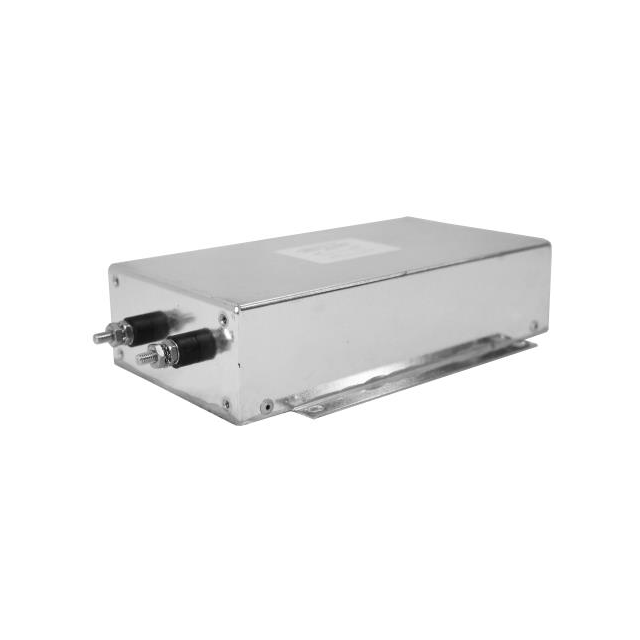

The RPM6600-50-S is a high-performance DC EMI power line filter from the RPM6600 series, manufactured by Astrodyne TDI. It is rated for 400 VDC and supports a continuous current of 50 A. Designed for chassis mounting with stud termination, this component operates within a temperature range of -40°C to +70°C. Its physical dimensions are 241 mm in length, 102 mm in width, and 47 mm in height.
Feature Summary
- Engineered as a MIL/COTS DC EMI filter for demanding environments
- Utilizes stud termination for secure chassis integration
- Constructed for high-current DC power line conditioning
Applications
- Military electronic systems requiring DC filtering
- COTS (Commercial Off-The-Shelf) equipment power inputs
- High-performance DC power distribution units
Procurement Notes
Verify availability status directly with authorized distributors or the manufacturer, as supply may be restricted. Confirm that the specific order suffix matches the required electrical ratings and mechanical configuration. Ensure compliance with relevant military or commercial standards applicable to your project before finalizing procurement.
Selection Notes
Select this model when a robust DC EMI filter is required for 50 A applications at 400 VDC. The chassis mount style and stud termination dictate the mechanical design of the enclosure. Verify that the operating temperature range meets the environmental conditions of the intended installation site.
Part Context
This component belongs to the RPM6600 series, which specializes in high-reliability power line filters. The series is characterized by its suitability for both military and commercial off-the-shelf applications, offering durable construction for critical power management tasks in aerospace and defense sectors.
Replacement Considerations
Consult official substitution guides for compatible alternatives within the RPM series or equivalent high-current DC filters. Verify that any substitute maintains the same voltage, current, and mounting specifications.
