RPM7020-10-QD

Overview

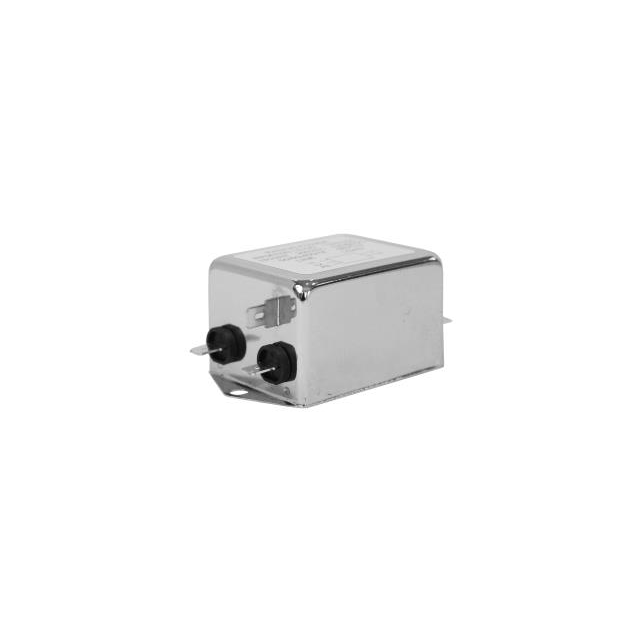

The Astrodyne TDI RPM7020-10-QD is a single-phase, two-stage EMI power line filter designed for chassis mounting. It features a maximum rated current of 10 A and a maximum voltage of 300 VAC at 60 Hz. The unit utilizes quick connect termination style with tab terminals for circuit integration. This military-grade component provides electromagnetic interference suppression in demanding environments.

Feature Summary

• Dual stage line filter configuration for enhanced noise attenuation
• Military-grade construction for high reliability applications
• Quick connect tab terminals for simplified installation

Applications

• Military electronic systems requiring EMI suppression
• Chassis-mounted power conditioning units
• Single-phase AC power line filtering

Procurement Notes

Verify the specific suffix 'QD' confirms quick connect tabs rather than stud mounts. Confirm the 10A rating matches system requirements. Check RoHS compliance status if required by project specifications. Ensure chassis mounting dimensions align with enclosure design constraints before procurement.

Selection Notes

Select this model when dual-stage attenuation is necessary for strict EMI standards. The 10A current rating suits moderate power loads. Choose the QD variant specifically for board-level or harness connections using tab terminals instead of threaded studs.

Part Context

This component belongs to the Astrodyne TDI RPM7020 series of single-phase power line filters. The series offers various current ratings including 5A, 15A, and 20A options. The RPM7020 series is characterized by its two-stage filtering architecture and robust chassis-mount design suitable for industrial and defense sectors.

Replacement Considerations

Cross-reference with RPM7020-10-S if stud termination is preferred instead of quick connect tabs. Verify that alternative models maintain the same 10A current and 300VAC voltage ratings to ensure electrical compatibility within the existing power system infrastructure.
