RPM7020-15-S

Overview

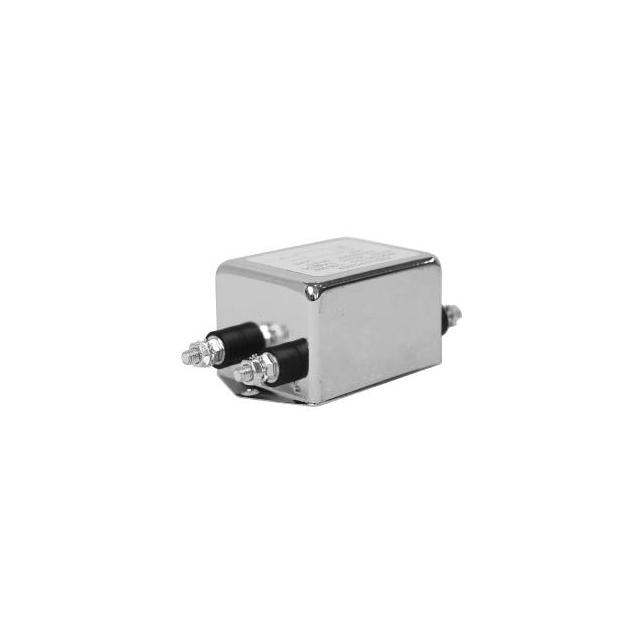

The RPM7020-15-S is a MIL COTS compact AC single-phase EMI power line filter manufactured by Astrodyne TDI. It features a voltage rating of 300 VAC and a current rating of 15 A. Designed for military and aerospace applications, this component provides electromagnetic interference suppression in shielded environments.

Feature Summary

• Compact chassis-mount design suitable for space-constrained installations
• Single-stage filtering configuration for efficient noise attenuation
• Built-in bleeder resistors to discharge capacitor voltage during shutdown

Applications

• Shielded aerospace facilities
• Defense electronic systems
• Military COTS equipment

Procurement Notes

Verify the specific datasheet version for the RPM7020-15-S to confirm compliance with MIL-PRF-15733 and MIL-STD-810 standards. Ensure that the installation environment meets the required temperature and humidity specifications for continuous operation at rated currents.

Selection Notes

Select this model for single-phase AC applications requiring 15 A capacity and 300 VAC rating. The compact form factor makes it suitable for integration into shielded rooms or cabinets where space is limited but high isolation performance is necessary.

Part Context

This component belongs to the RPM7020 series, which includes various current ratings within the same compact chassis-mount family. It shares design characteristics with other Astrodyne TDI filters intended for military and industrial EMI protection.

Replacement Considerations

Consult official substitution lists for equivalent current ratings and voltage specifications. Verify mechanical dimensions and terminal types when replacing existing units to ensure compatibility with mounting structures.
