RPM7050-10-S

Overview

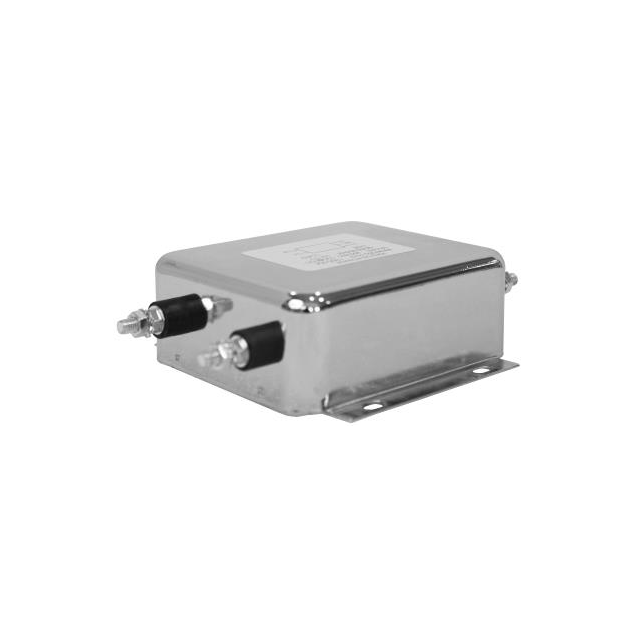

The RPM7050-10-S is a single-phase, two-stage EMI/EMC power line filter manufactured by Astrodyne TDI. It features a rated current of 10 A and a voltage rating of 300 VAC. Designed for chassis mounting, it utilizes M5 threaded post termination. The unit operates within a frequency range of 50 Hz to 400 Hz and supports temperatures from -40°C to +100°C.

Feature Summary

• Two-stage filtering configuration for enhanced noise attenuation
• Chassis mount design with M5 threaded post termination
• Operational capability across 50 Hz to 400 Hz frequencies

Applications

• Military and COTS AC systems
• Single-phase power line protection
• EMI/EMC suppression in industrial equipment

Procurement Notes

Verify the specific suffix 'S' against official datasheets to confirm exact termination style and mechanical dimensions. Confirm that the 300VAC rating aligns with your system's peak voltage requirements. Ensure chassis mounting provisions accommodate the M5 threaded posts. Check environmental ratings if operation exceeds standard temperature ranges.

Selection Notes

Select this component when a single-phase, two-stage filter is required for 10A applications. The M5 threaded post interface suits chassis-mounted installations. Verify compatibility with 50/60Hz or 400Hz input sources. Consider the physical dimensions and thermal limits (-40°C to +100°C) during integration planning.

Part Context

This model belongs to the RPM7050 series, which includes variants such as RPM7050-20-S and RPM7020-20-S. These filters are designed for robust power line conditioning. The series typically offers multi-stage attenuation for stringent EMC compliance in demanding environments.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer catalogs for direct equivalents within the RPM7050 series or comparable single-phase chassis-mount filters.
