Product Detailed Parameters
- Description：LINE FILTER 300VAC 15A CHASS MNT
- Series：RPM7200
- Mfr：Astrodyne TDI
- Package：Box
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：300V
- Current：15 A
- Frequency - Operating：50/60Hz, 50/400Hz
- Applications：-
- Approval Agency：-
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M5)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
Download product information
Overview

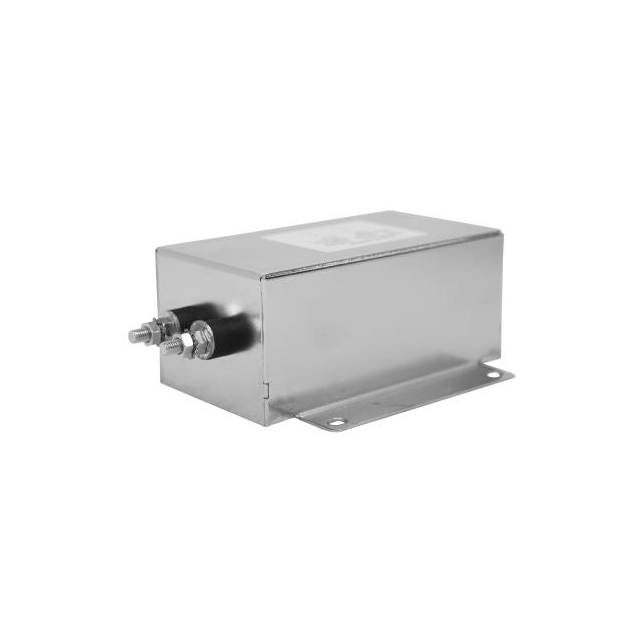

The RPM7200-15-S is a single-phase AC power line filter from the Astrodyne TDI RPM7200 series. It features a chassis mount installation style with stud termination. The component is rated for a current of 15 A and operates at 300 VAC, 60 Hz. Designed as a MIL COTS EMI filter, it provides electromagnetic interference suppression for sensitive electronic systems requiring robust filtering in demanding environments.
Feature Summary
- Provides MIL COTS EMI power line filtering for single-phase AC applications
- Features chassis mount construction with stud termination for secure integration
- Designed for operation at 15 A current and 300 VAC voltage ratings
Applications
- Military and aerospace electronic systems
- COTS (Commercial Off-The-Shelf) equipment requiring EMI protection
- Single-phase AC power distribution networks
Procurement Notes
Verify the specific datasheet for the RPM7200-15-S to confirm detailed electrical characteristics and mechanical dimensions. Ensure compatibility with the target system's mounting hardware and stud specifications. Confirm that the 15 A rating and 300 VAC input meet the operational requirements of the intended application before procurement.
Selection Notes
Select this component for single-phase AC applications requiring MIL COTS compliance. The 15 A current rating and 300 VAC voltage define its operational limits. Consider the chassis mount form factor and stud termination when designing the enclosure. Verify that the EMI attenuation performance meets the specific interference environment requirements of the deployment.
Part Context
This part belongs to the RPM7200 series by Astrodyne TDI, which specializes in high-performance power line filters. The series includes various configurations for different current and voltage ratings. The RPM7200-15-S specifically addresses single-phase needs with a focus on military and commercial off-the-shelf standards.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided data. Consult the manufacturer or authorized distributors for equivalent components within the same series or alternative models with matching electrical and mechanical specifications.
