Product Detailed Parameters
- Description：LINE FILTER 300VAC 50A CHASS MNT
- Series：RPM7200
- Mfr：Astrodyne TDI
- Package：Box
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：300V
- Current：50 A
- Frequency - Operating：50/60Hz, 50/400Hz
- Applications：-
- Approval Agency：-
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M5)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
Download product information
Overview

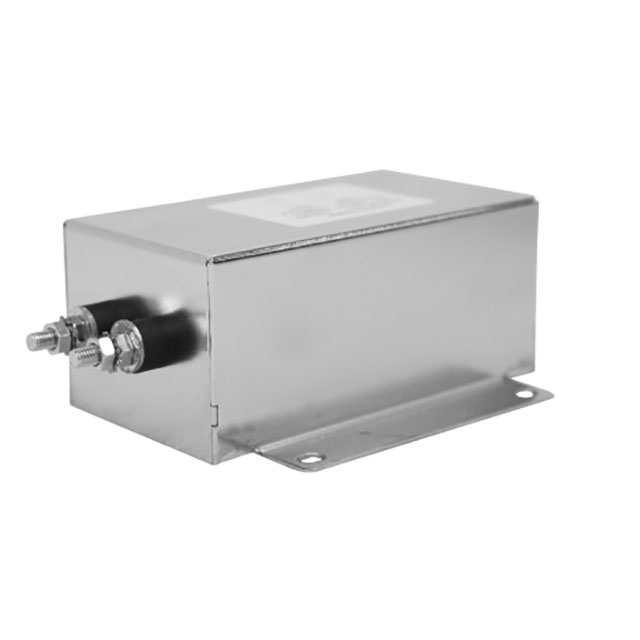

The RPM7200-50-S is a single-phase power line filter from the Astrodyne TDI RPM7200 series, designed for chassis mounting. It features stud-type termination and operates at 50 Hz or 60 Hz with a voltage rating of 300 VAC. The unit supports a current rating of 10 A and has a maximum leakage current of 0.8 mA. Physical dimensions are approximately 108 mm in length, 76 mm in width, and 64 mm in height. It complies with EN60939 standards.
Feature Summary
- Single-stage EMI filtering architecture for noise suppression
- Chassis mount design with stud termination for secure installation
- Low leakage current specification suitable for sensitive applications
Applications
- Industrial equipment power conditioning
- Medical device power input protection
- Avionics and military ground support systems
Procurement Notes
Verify the specific suffix designation against the manufacturer's latest datasheet to confirm electrical characteristics and compliance certifications. Ensure that the stud termination type matches the panel mounting hardware requirements. Confirm RoHS status and lead time availability through authorized distributors prior to finalizing procurement orders.
Selection Notes
Select this component when a single-phase, high-reliability filter is required for 300 VAC systems. The 10 A current rating and low leakage current make it suitable for applications where safety isolation is critical. Compare physical dimensions against available chassis space and verify that stud mounting is feasible for the intended enclosure design.
Part Context
This part belongs to the RPM7200 series, which provides robust EMI/RFI attenuation for demanding environments. The series is characterized by its rugged construction and compliance with stringent international standards. It serves as a key component in power supply chains requiring reliable noise filtration for sensitive electronic loads.
Replacement Considerations
No direct substitute part numbers are publicly confirmed in the provided documentation. Cross-reference with other Astrodyne TDI single-phase filters if current ratings differ. Verify compatibility with existing mounting structures before considering alternative models.
