RPM8500-10-S

Overview

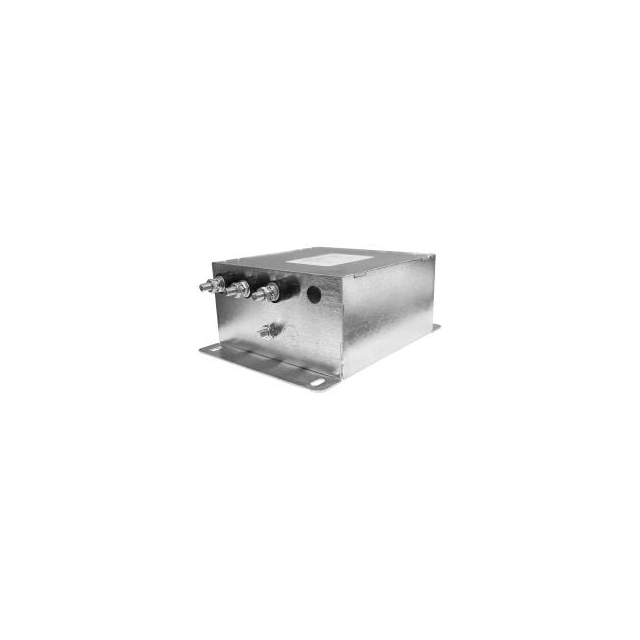

The RPM8500-10-S is a MIL COTS three-phase delta EMI power line filter manufactured by Astrodyne TDI. It supports a current rating of 10A and operates at voltages up to 300VAC. The component functions within a frequency range of 47Hz to 400Hz, making it suitable for aerospace and military applications requiring wideband interference suppression.

Feature Summary

• Designed for MIL COTS environments with robust electromagnetic interference suppression
• Configured for three-phase delta power systems
• Capable of operation across extended frequency ranges including high-frequency aerospace bands

Applications

• Military aircraft electrical systems
• Avionics power conditioning units
• Defense ground support equipment

Procurement Notes

Verify the specific datasheet revision and compliance certifications prior to procurement. Confirm that the three-phase delta configuration matches the system requirements. Ensure the operating temperature range aligns with the intended deployment environment. Check for any restricted material listings or export control classifications associated with this military-grade component.

Selection Notes

Select this model when a three-phase delta topology is required for 10A applications in aerospace or defense contexts. Consider the 47Hz to 400Hz operational bandwidth for compatibility with variable frequency drives or aircraft generators. Evaluate leakage current specifications against sensitive medical or communication equipment constraints if applicable.

Part Context

This component belongs to the RPM8500 series, which specializes in high-performance filters for demanding industrial and military sectors. The series emphasizes reliability and compact chassis-mount designs. It addresses strict EMI standards in environments where standard commercial filters may fail due to vibration or extreme conditions.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Verify compatibility with existing mounting hardware and terminal configurations before considering alternative manufacturers.
