RPM9000-5-QD

Overview

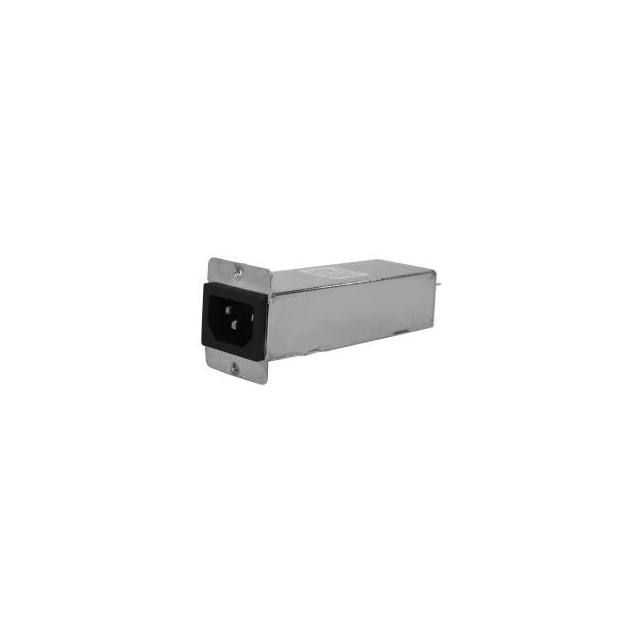

The Astrodyne TDI RPM9000-5-QD is a MIL/COTS AC single-phase IEC inlet EMI power line filter. It features a 5A current rating and operates within a temperature range of -40°C to +55°C. The unit measures 104 mm in length and 43 mm in height, designed for chassis mounting applications requiring compact form factors.

Feature Summary

• Integrated IEC inlet connector for simplified wiring
• MIL/COTS compliant construction for rugged environments
• Single-stage EMI filtering topology

Applications

• Military avionics systems
• Commercial off-the-shelf (COTS) electronic enclosures
• Ruggedized industrial control units

Procurement Notes

Verify the specific IEC inlet type and pin configuration against system requirements. Confirm thermal management capabilities for operation near the maximum rated temperature of +55°C. Ensure mechanical clearance accommodates the 104 mm length and 43 mm height dimensions during integration.

Selection Notes

Select this component when an integrated IEC inlet is required for single-phase AC filtering in space-constrained military or COTS applications. Compare leakage current specifications against safety standards if low leakage is critical. Evaluate the 5A rating against peak load currents to ensure adequate margin.

Part Context

This model belongs to the RPM9000 series, which specializes in MIL/COTS AC power filters. The series typically utilizes stud or quick-connect terminations, but this specific variant integrates an IEC inlet for direct cordset attachment, distinguishing it from standard panel-mount equivalents.

Replacement Considerations

Cross-reference with other RPM9000 variants for different current ratings or termination styles. Verify compatibility with existing mounting hardware due to dimensional differences between inlet and stud-mounted models.
