Product Detailed Parameters
- Description：LINE FILTER 480VAC 63A CHASS MNT
- Series：RPMC5014
- Mfr：Astrodyne TDI
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：480V
- Current：63 A
- Frequency - Operating：50/60Hz
- Applications：-
- Approval Agency：-
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (3/8-16)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：2.2 kV
Download product information
Overview

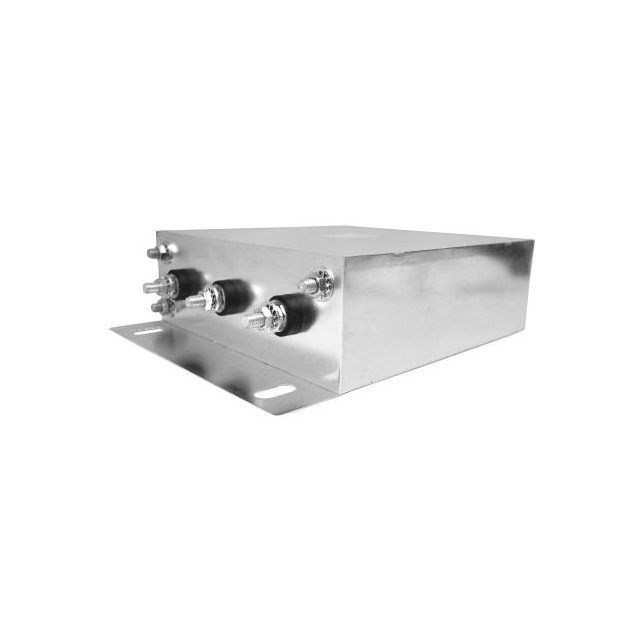

The Astrodyne TDI RPMC5014-63 is a MIL/COTS three-phase delta EMI power line filter rated for 63A. It operates at 50 Hz and 60 Hz frequencies. The unit features flange mounting with 3/8-16 stud input terminals. Physical dimensions include a length of 330.7 mm, width of 254.5 mm, and height of 88.9 mm.
Feature Summary
- Designed as a MIL/COTS compliant three-phase delta EMI power line filter
- Utilizes flange mounting configuration with robust stud input terminals
- Engineered to maintain performance in demanding industrial conditions
Applications
- Industrial power applications requiring robust EMI suppression
- Military and commercial off-the-shelf (COTS) equipment integration
- Three-phase delta power distribution systems
Procurement Notes
Verify the specific part number RPMC5014-63 against official Astrodyne TDI documentation to confirm current availability status and RoHS compliance details. Ensure that the 63A current rating and three-phase delta configuration match your system requirements before procurement. Cross-reference terminal specifications to guarantee compatibility with existing mounting hardware.
Selection Notes
Select this component when a three-phase delta EMI filter is required for high-current applications up to 63A. Confirm that the physical envelope fits within the designated enclosure space, considering the specified length, width, and height. Verify that the operating frequency range of 50 Hz and 60 Hz aligns with the target power supply infrastructure.
Part Context
This component belongs to the RPMC5014 series from Astrodyne TDI, which specializes in power and EMI filter solutions. The manufacturer integrates brands such as LCR, Radius Power, and Filter Concepts. This series targets markets requiring dependable power filtering solutions for medical and industrial sectors.
Replacement Considerations
Consult official Astrodyne TDI documentation for confirmed substitute part numbers within the RPMC5014 series or equivalent MIL/COTS compatible filters. Do not assume interchangeability based on generic specifications alone.
