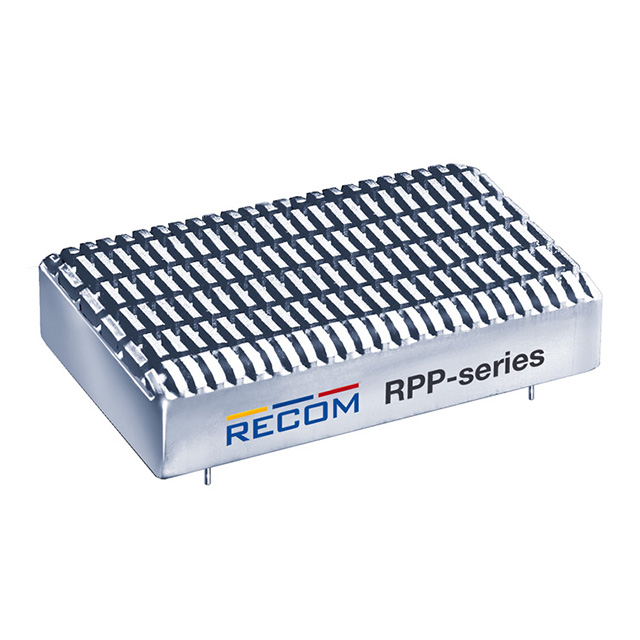

RPP20-2412SW

RPP20-2412SW is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER 12V 20W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RPP20-2412SW

• Description：DC DC CONVERTER 12V 20W
• Series：POWERLINE+ RPP20-W (20W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1.67A
• Power (Watts)：20 W
• Voltage - Isolation：1.6 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, SCP, UVLO
• Operating Temperature：-45°C ~ 95°C
• Efficiency：88.10%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：1.60" L x 1.00" W x 0.46" H (40.6mm x 25.4mm x 11.7mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for RPP20-2412SW
