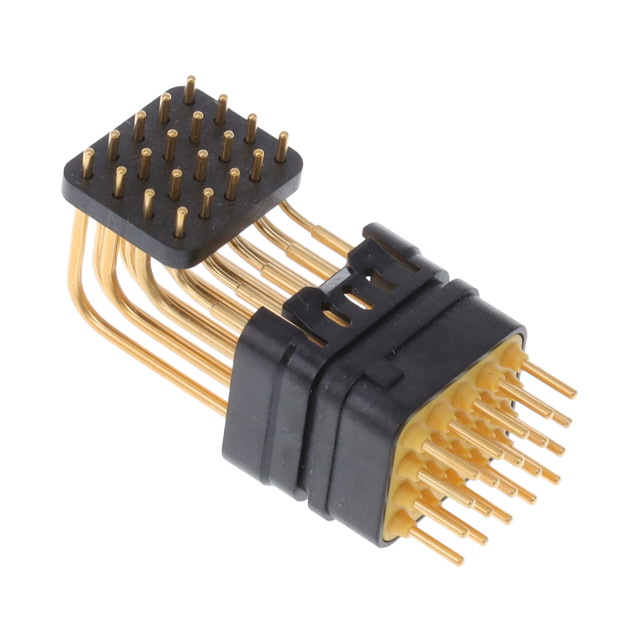

RPRM20-22PNCR is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists ITT Cannon, LLC. Its product description is CONN EN4165 INSERT 20-22 PIN R/A. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for RPRM20-22PNCR
- Description：CONN EN4165 INSERT 20-22 PIN R/A
- Series：RPR EN4165-Style
- Mfr：ITT Cannon, LLC
- Package：Bag
- Connector Type：Insert
- Contact Type：Male Pin
- Pitch - Mating：-
- Number of Positions：20
- Number of Rows：-
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board
- Shrouding：Unshrouded
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Gold
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 175°C
- Ingress Protection：-
- Material Flammability Rating：-
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Headers, Male Pins datasheet and documents for RPRM20-22PNCR
Headers, Male Pins Overview
The RPRM20-22PNCR is a rectangular connector header manufactured by ITT Cannon, LLC. It features a right-angle through-hole design with 20 positions. Classified under EN4165-style connectors, this component serves as a male pin header for electronic circuit board interconnections.
Headers, Male Pins Feature Summary
- Right-angle orientation for space-efficient PCB mounting
- Through-hole termination method for secure mechanical attachment
- Male pin contact configuration for mating with socket headers
Headers, Male Pins Applications
- Electronic circuit board interconnections
- Industrial control system signal routing
- Aviation and defense electronics assemblies
Headers, Male Pins Procurement Notes
Verify the specific manufacturer part number against official ITT Cannon documentation to ensure compatibility with required EN4165 standards. Confirm that the right-angle through-hole configuration matches the target printed circuit board layout constraints before finalizing procurement orders.
Headers, Male Pins Selection Notes
Select this component when a 20-position male header is required for right-angle PCB mounting. Ensure the application environment supports standard through-hole assembly processes. Verify that the EN4165 form factor aligns with existing system mechanical specifications and mating interface requirements.
Headers, Male Pins Part Context
This component belongs to the family of rectangular connectors designed for robust industrial and aerospace applications. The EN4165 style indicates compliance with specific military and aviation connector standards, ensuring reliability in demanding operational environments compared to commercial-grade alternatives.
Headers, Male Pins Replacement Considerations
Consult official ITT Cannon cross-reference guides for verified substitute part numbers. Ensure any replacement maintains the same 20-position count, right-angle orientation, and through-hole termination type to preserve mechanical and electrical interface integrity.
