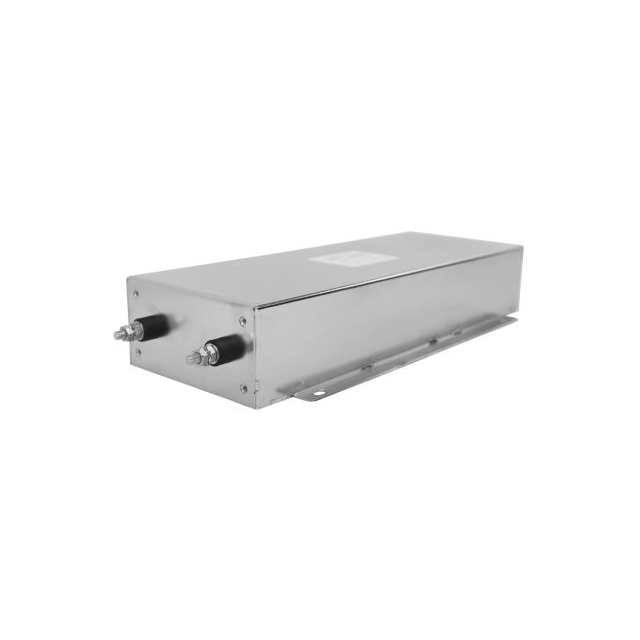

RPT5500-35-S

$2,236.39

Description：LINE FILTER 300VAC 35A CHASS MNT
Series：RPT5500
Mfr：Astrodyne TDI
Package：Box

SKU:327b565363b2 Category: Power Line Filter Modules Brand: Astrodyne TDI

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 300VAC 35A CHASS MNT
Series：RPT5500
Mfr：Astrodyne TDI
Package：Box
Filter Type：Single Phase
Configuration：Three Stage
Voltage - Rated DC：-
Voltage - Rated AC：300V
Current：35 A
Frequency - Operating：50/60Hz, 50/400Hz
Applications：-
Approval Agency：-
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Threaded Post (M5)
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-

Download product information

RPT5500-35-S

Overview

The RPT5500-35-S is a single-phase EMI power line filter from the Astrodyne TDI RPT5000 series. It features a three-stage design with threaded post termination (M5). Rated for 35 A current and 300 VAC voltage, it operates at frequencies of 50 Hz, 60 Hz, and 400 Hz. The unit supports chassis mounting and has a leakage current of 3.5 mA. Operating temperatures range from -40°C to +70°C.

Feature Summary

Three-stage EMI/EMC filtering architecture
Chassis mount installation with stud termination
Compatible with 50/60/400 Hz power systems

Applications

Military and aerospace electronic equipment
TEMPEST compliant systems
Commercial off-the-shelf (COTS) hardware

Procurement Notes

Verify the specific datasheet version for the RPT5500-35-S to confirm mechanical dimensions and terminal specifications. Ensure compatibility with M5 threaded posts for proper installation. Check RoHS compliance status if required by project standards. Confirm operating temperature ranges match environmental conditions.

Selection Notes

Select this model for applications requiring high current handling up to 35 A in a single-phase configuration. The 300 VAC rating suits standard industrial and aviation power supplies. Consider the chassis mount style for robust integration into metal enclosures. Evaluate the three-stage attenuation against specific noise spectrum requirements.

Part Context

This component belongs to the RPT5000 series of power line filters manufactured by Astrodyne TDI. The series provides EMI suppression for AC power lines. The RPT5500-35-S variant specifically addresses higher current demands compared to lower-rated models within the same family.

Replacement Considerations

Consult official substitution guides for equivalent filters with matching current and voltage ratings. Verify mechanical fit for chassis mounting and terminal type compatibility.
