Product Detailed Parameters
- Description：LINE FILTER 300VAC 5A CHASS MNT
- Series：RPT5510
- Mfr：Astrodyne TDI
- Package：Box
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：300V
- Current：5:00 AM
- Frequency - Operating：50/60Hz, 50/400Hz
- Applications：-
- Approval Agency：-
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M5)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
Download product information
Overview

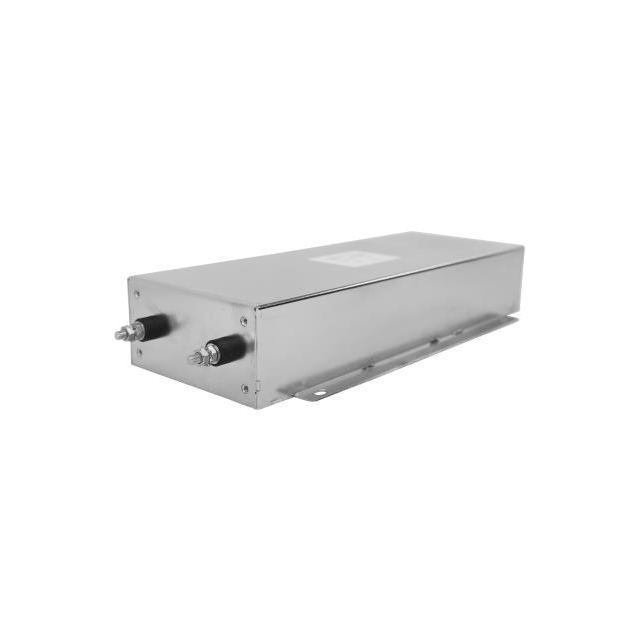

The RPT5510-5-S is a single-phase AC EMI power line filter manufactured by Astrodyne TDI. It features a two-stage design rated for 5 A current and 300 V voltage at 50/60 Hz or 50/400 Hz frequencies. The unit utilizes threaded M5 posts for termination and chassis mounting. It provides TEMPEST/COTS shielding capabilities to suppress electromagnetic interference in sensitive environments.
Feature Summary
- Two-stage filtering architecture for enhanced noise attenuation
- TEMPEST and COTS compliant shielding for secure signal integrity
- Threaded post termination with M5 specification
Applications
- Secure communication systems requiring TEMPEST compliance
- Commercial off-the-shelf (COTS) electronic equipment
- Sensitive AC power line noise suppression applications
Procurement Notes
Verify the specific datasheet version for the RPT5510-5-S to confirm exact mechanical dimensions and electrical ratings before integration. Ensure that the M5 threaded post termination matches your system's mounting hardware. Confirm that the 5 A current rating and 300 V voltage limits align with your operational requirements. Check for any specific environmental certifications required for your deployment scenario.
Selection Notes
Select this component when a single-phase, two-stage AC filter with TEMPEST shielding is required. The 5 A rating suits low-power sensitive electronics. Verify compatibility with 50/60 Hz or 50/400 Hz input frequencies. The M5 threaded post interface dictates the mechanical mounting strategy. Ensure the chassis mount style fits the available enclosure space.
Part Context
This part belongs to the RPT5510 series of power line filters from Astrodyne TDI. The series offers various current ratings and configurations for AC applications. The RPT5510-5-S specifically addresses the need for compact, shielded filtering in single-phase circuits. It complements other models in the lineup designed for different current loads and mounting styles.
Replacement Considerations
Consult official substitution guides for equivalent two-stage TEMPEST-rated filters. Verify that replacement parts maintain the 5 A rating and M5 termination. Ensure compatibility with existing chassis mounting constraints and frequency specifications.
