RS1DAL

Single Diodes Overview

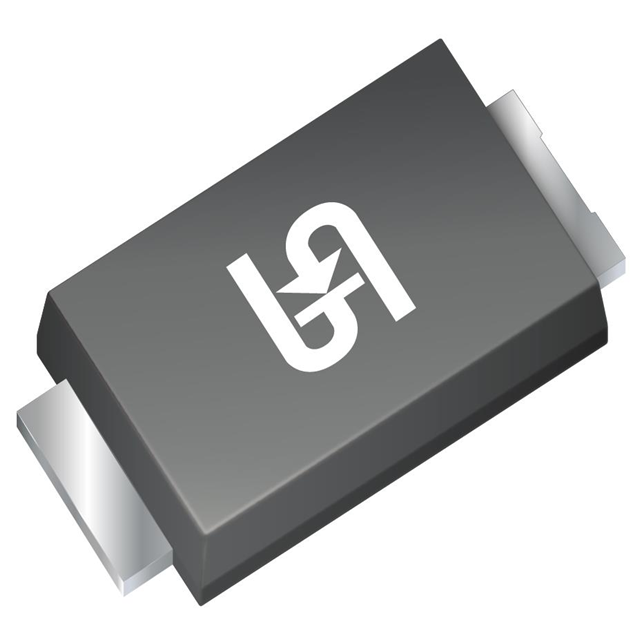

The RS1DAL is a standard recovery rectifier manufactured by Taiwan Semiconductor Corporation, designed for surface-mount applications in the Thin SMA (DO-221AC) package. It features a maximum DC reverse voltage of 200 V and an average forward rectified current of 1 A. Key electrical parameters include a maximum forward voltage of 1.3 V at 1 A, a reverse leakage current of 1 µA at 200 V, and a junction operating temperature range from -55°C to +150°C.

Single Diodes Feature Summary

• Standard recovery technology optimized for general-purpose rectification tasks
• Thin SMA surface-mount packaging facilitates automated assembly and space-constrained designs
• High thermal stability supports reliable operation across extended industrial temperature ranges

Single Diodes Applications

• General-purpose rectification in consumer electronics power supplies
• DC-DC converter output stages requiring compact form factors
• Low-frequency switching circuits in automotive accessories

Single Diodes Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and specific revision levels via official datasheets before integration. Ensure storage conditions align with semiconductor handling standards to prevent moisture sensitivity issues during soldering processes.

Single Diodes Selection Notes

Select this component when a 200 V rating and 1 A continuous current capacity meet circuit requirements. The Thin SMA package offers a smaller footprint compared to standard SMA variants. Evaluate thermal management needs based on the specified junction temperature limits and expected ambient operating conditions.

Single Diodes Part Context

This device belongs to Taiwan Semiconductor's RS1D series of single diodes. It serves as a surface-mount alternative to through-hole rectifiers, providing comparable electrical performance in a reduced physical profile. The series targets applications requiring reliable standard recovery characteristics without the complexity of fast-recovery technologies.

Single Diodes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify pinout compatibility and electrical specifications against potential alternatives before substitution.
