Product Detailed Parameters
- Description：IC REG LINEAR 5V 300MA SOT23-3
- Series：-
- Mfr：Runic Technology
- Package：Tape & Reel (TR),Cut Tape (CT)
- Output Configuration：Positive
- Output Type：Fixed
- Number of Regulators：1
- Voltage - Input (Max)：45V
- Voltage - Output (Min/Fixed)：5V
- Voltage - Output (Max)：-
- Voltage Dropout (Max)：0.4V @ 100mA
- Current - Output：300mA
- Current - Quiescent (Iq)：4 µA
- Current - Supply (Max)：-
- PSRR：72dB ~ 60dB (217Hz ~ 10kHz)
- Control Features：Enable
- Protection Features：Over Current, Over Temperature
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Package / Case：TO-236-3, SC-59, SOT-23-3
- Supplier Device Package：SOT-23-3
- Grade：-
- Qualification：-
Download product information
Overview

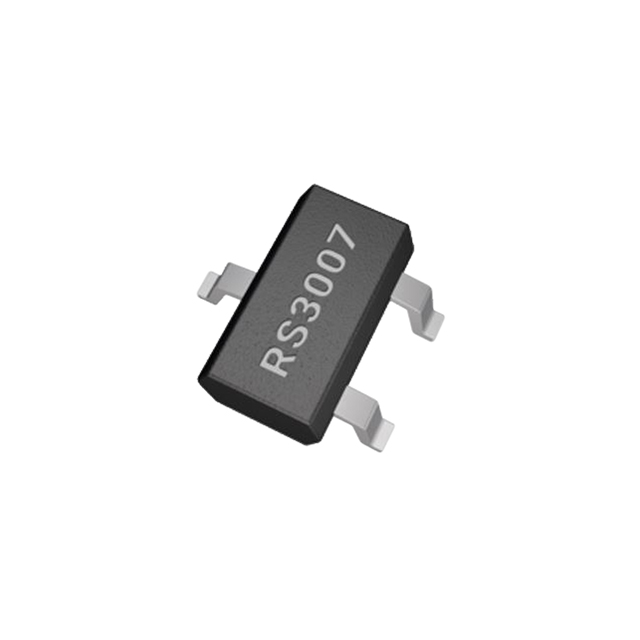

The RS3007-5.0AYF3 is a low-power high-voltage linear voltage regulator manufactured by Runic Technology using CMOS technology. It provides a fixed 5.0V output with a maximum load current of 300mA. The device supports an input voltage range up to 45V, making it suitable for multi-cell battery systems and bus voltage applications. It features a compact SOT-23-3 package and includes protection mechanisms such as over-current and thermal shutdown.
Feature Summary
- High input voltage tolerance up to 45V
- Low power consumption via CMOS implementation
- Integrated over-current and thermal shutdown protection
Applications
- Multi-cell battery powered systems
- Bus voltage supply systems
- General high DC voltage regulation
Procurement Notes
Verify the specific suffix 'AYF3' against the manufacturer's official datasheet to confirm pinout and package details. Ensure compatibility with 45V input requirements. Check for RoHS compliance status in the latest documentation before integration.
Selection Notes
Select this component when a fixed 5V output is required from inputs significantly higher than the output voltage, up to 45V. Consider the 300mA current limit and SOT-23-3 thermal performance for the specific application environment.
Part Context
This part belongs to the RS3007 series of linear regulators from Runic Technology. It is designed for power management in portable and industrial electronics requiring stable voltage regulation from high-voltage sources.
Replacement Considerations
Consult official substitution lists for equivalent LDOs with similar 45V input ratings and 300mA output capabilities. Verify pin compatibility if replacing in existing designs.
