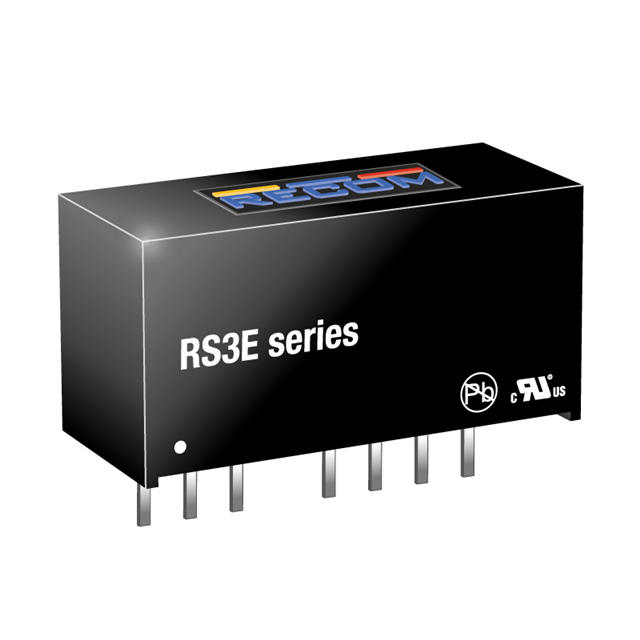

RS3E-1224S/H3

RS3E-1224S/H3 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER 24V 3W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RS3E-1224S/H3

• Description：DC DC CONVERTER 24V 3W
• Series：ECONOLINE RS3E (3W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：18V
• Voltage - Output 1：24V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：125mA
• Power (Watts)：3 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off
• Operating Temperature：-40°C ~ 70°C (With Derating)
• Efficiency：80%
• Mounting Type：Through Hole
• Package / Case：8-SIP Module, 7 Leads
• Size / Dimension：0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：CB, cURus
• Standard Number：62368-1
• Grade：-
• Qualification：-
