RS512-2-02

Overview

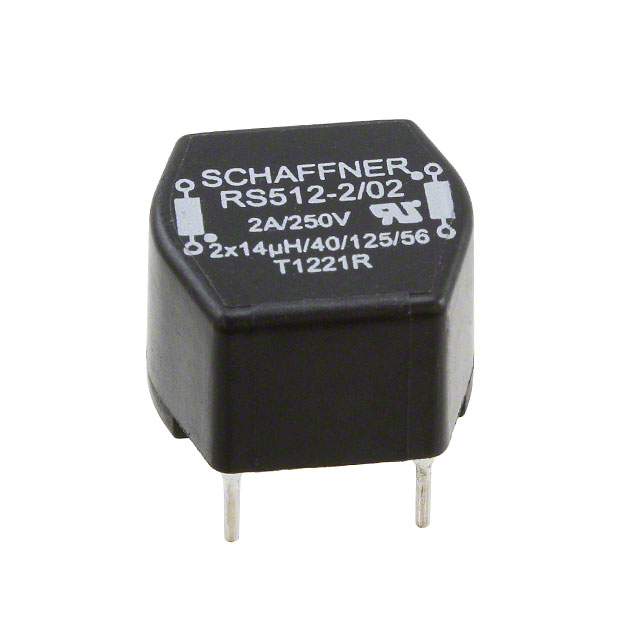

The Schaffner RS512-2-02 is a single-phase power line filter module designed for electromagnetic compatibility (EMC) applications. It operates at AC voltages up to 250V and supports a rated current of 2A. The component features a chassis mounting configuration with quick-connect terminals, ensuring secure installation in industrial enclosures. Designed for general-purpose use, it effectively attenuates conducted interference on AC power lines within the specified frequency range.

Feature Summary

• Provides effective attenuation of electrical noise and interference on AC power lines
• Features a robust chassis mount design suitable for industrial enclosure integration
• Utilizes quick-connect terminals for simplified wiring and maintenance

Applications

• Power supply units requiring EMI suppression
• Battery charger systems
• Portable electronic devices
• Energy-efficient equipment

Procurement Notes

Verify that the specific application voltage does not exceed the 250V AC rating and that the load current remains within the 2A limit. Confirm that the chassis mounting style and quick-connect terminal type are compatible with the existing system infrastructure before procurement.

Selection Notes

Select this model when a compact, single-phase solution is required for low-current applications. Ensure the operating environment accommodates the chassis mounting requirement and that the quick-connect interface matches the available wiring harnesses or terminal blocks.

Part Context

This component belongs to the RS series of power line filter modules from Schaffner EMC Inc. These modules are engineered to meet IEC standards for leakage current, offering compliance with safety regulations while maintaining efficient noise reduction capabilities for sensitive electronic circuits.

Replacement Considerations

Consult official Schaffner documentation for verified substitute part numbers. Do not assume cross-compatibility with other series without verifying electrical ratings and physical dimensions.
