RS512-4-02

Overview

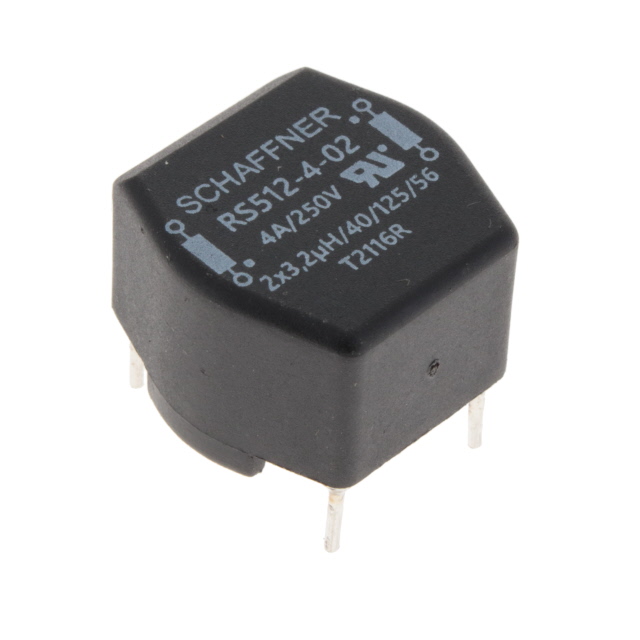

The Schaffner RS512-4-02 is a two-line common mode choke designed for signal line filtering applications. It provides effective suppression of conducted electromagnetic interference in electronic circuits. The component features radial leads suitable for printed circuit board mounting, ensuring secure mechanical attachment during operation.

Feature Summary

• Designed for signal line filtering to suppress conducted electromagnetic interference
• Radial lead configuration facilitates reliable printed circuit board mounting

Applications

• Signal line filtering in electronic equipment
• Suppression of conducted electromagnetic interference
• Long-life equipment requiring vibration and thermal cycling resistance

Procurement Notes

Verify the manufacturer designation matches Schaffner EMC Inc. Confirm the part number RS512-4-02 corresponds to the specific two-line common mode choke variant. Ensure compatibility with PCB layout requirements regarding lead spacing and mounting orientation before procurement.

Selection Notes

Select this component when signal integrity requires attenuation of common mode noise on data lines. Consider its radial lead structure for through-hole assembly processes. Evaluate environmental resilience against thermal cycling and vibration if deployed in demanding operational settings.

Part Context

This component belongs to the RS series of electromagnetic filters manufactured by Schaffner EMC Inc. The series includes various configurations tailored for different filtering needs within electronic systems, emphasizing reliability and performance in noise reduction applications.

Replacement Considerations

Cross-reference with other Schaffner RS series variants such as RS612-4-02 for potential functional equivalents. Verify pinout compatibility and electrical specifications before substituting with components from other manufacturers.
