RS514-2-02

Overview

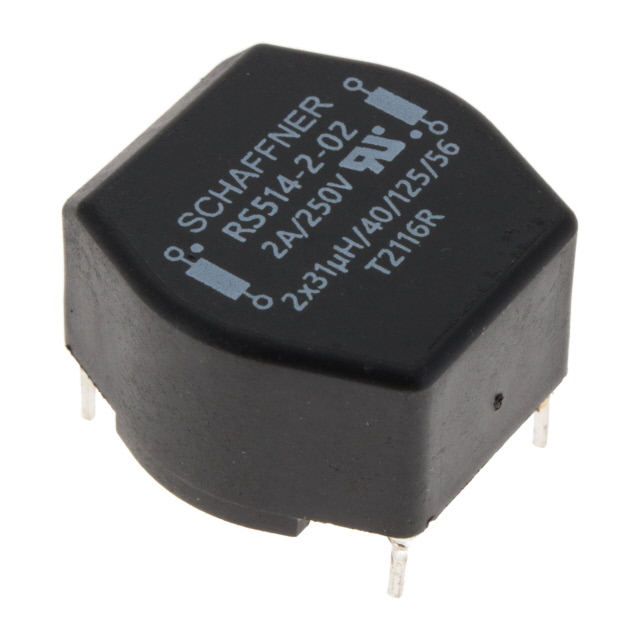

The Schaffner EMC Inc. RS514-2-02 is a common mode choke designed for electromagnetic interference suppression in electronic circuits. It features a rated current of 2 A and an inductance value of 30 uH. The component utilizes through-hole termination for PCB mounting and operates within a temperature range of -40°C to +100°C.

Feature Summary

• Provides effective common mode noise attenuation for differential signal lines
• Supports reliable operation across extended industrial temperature ranges
• Facilitates secure mechanical integration via through-hole leaded construction

Applications

• Differential data interface protection
• Industrial control system signal conditioning
• Embedded communication circuit filtering

Procurement Notes

Verify the specific manufacturer part number against official Schaffner documentation to ensure compatibility with design requirements. Confirm that the through-hole package dimensions and pin spacing align with the target printed circuit board layout before finalizing procurement decisions.

Selection Notes

Select this component when designing circuits requiring robust common mode noise rejection for low-current differential signals. Ensure the operating environment remains within the specified thermal limits and that the physical footprint accommodates the through-hole mounting style required by the assembly process.

Part Context

This component belongs to the RS series of passive filters manufactured by Schaffner EMC Inc., a subsidiary of TE Connectivity. The series focuses on providing compact, high-performance EMI suppression solutions for various electronic applications requiring reliable signal integrity maintenance.

FAQ

What is the inductance value of the RS514-2-02?

The inductance value is 30 uH.

What is the maximum rated current for this component?

The maximum rated current is 2 A.
