RS612-0.5-02

Overview

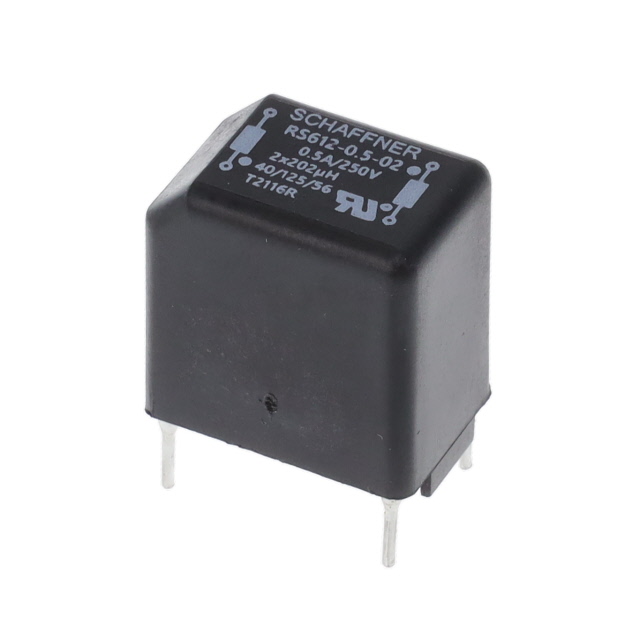

The Schaffner RS612-0.5-02 is a through-hole differential-mode choke designed for electromagnetic compatibility applications. It features an inductance of 200 µH and supports a maximum current of 0.5 A. The component utilizes a two-line configuration with radial leads for printed circuit board mounting. Key electrical parameters include a rated voltage of 650 V and a self-resonant frequency of 8 kHz. Physical dimensions include a length of 44.9 mm and a lead diameter of 1.98 mm, ensuring robust integration into industrial electronic systems.

Feature Summary

• Provides effective differential-mode noise suppression for power lines
• Supports high voltage isolation up to 650 V for safety compliance
• Features radial through-hole construction for secure PCB attachment

Applications

• Industrial machinery power supply filtering
• Electromagnetic compatibility (EMC) circuits
• Power electronics input stages

Procurement Notes

Verify the specific manufacturer part number against official Schaffner documentation to ensure accuracy. Confirm that the required current rating and inductance values align with the design specifications. Check for any specific handling requirements or environmental certifications relevant to the target application before finalizing procurement.

Selection Notes

Select this component when a low-current, high-voltage differential-mode choke is required for PCB-mounted applications. Ensure the operating environment accommodates the thermal characteristics of through-hole components. Compare against alternative series if higher current capacity or different mounting styles are needed for the specific system architecture.

Part Context

This component belongs to the RS series of differential-mode chokes from Schaffner EMC Inc. The series is engineered for general-purpose EMC filtering in electronic equipment. These chokes are designed to attenuate common mode and differential mode interference, contributing to overall system reliability and regulatory compliance in various industrial sectors.

Replacement Considerations

Consult official Schaffner substitution guides for verified equivalent part numbers. Ensure replacement components match the original inductance, current rating, and physical footprint. Do not assume cross-compatibility with other manufacturers without verifying technical specifications against the original datasheet.
