RS612-1-02

Overview

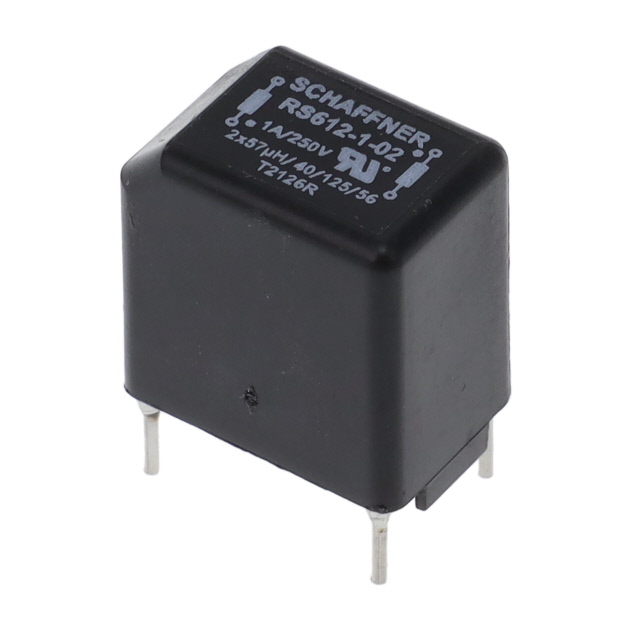

The Schaffner RS612-1-02 is a radial through-hole common mode inductor designed for electromagnetic interference suppression. It provides an inductance of 55 µH with a maximum DC current rating of 1 A. The component features a symmetric choke design suitable for differential and single-phase applications, utilizing PC pin termination for reliable board mounting.

Feature Summary

• Symmetric choke construction for balanced noise attenuation
• Through-hole radial leaded package for robust mechanical stability
• PC pin termination for standard printed circuit board integration

Applications

• Single-phase power line filtering
• Differential signal noise suppression
• General-purpose EMI mitigation in consumer electronics

Procurement Notes

Verify the specific manufacturer designation against TE Connectivity / Schaffner official documentation to confirm current production status and datasheet accuracy. Ensure that the ordering suffix corresponds exactly to the required electrical parameters and physical dimensions before finalizing procurement orders.

Selection Notes

Select this component when a low-current (1 A) common mode solution is required for single-phase circuits. The 55 µH value targets specific frequency ranges for differential noise reduction. Confirm that the radial form factor and PC pin spacing align with the target PCB layout constraints.

Part Context

This part belongs to the RS series of common mode chokes from Schaffner EMC Inc., now integrated into TE Connectivity. The series offers various inductance and current ratings for general EMI suppression needs. The RS612-1-02 represents a specific configuration within this family optimized for lower current applications.

Replacement Considerations

Consult official cross-reference lists for verified substitutes. Potential alternatives may include other Schaffner RS series variants or comparable common mode chokes from manufacturers such as TDK or Murata, provided they match the 55 µH inductance and 1 A current rating.
