Product Detailed Parameters
- Description：LINE FILTER 250VAC 2A TH
- Series：RS
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：2:00 AM
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：UR
- Operating Temperature：-40°C ~ 125°C
- Mounting Type：Through Hole
- Termination Style：-
- Inductance：56µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

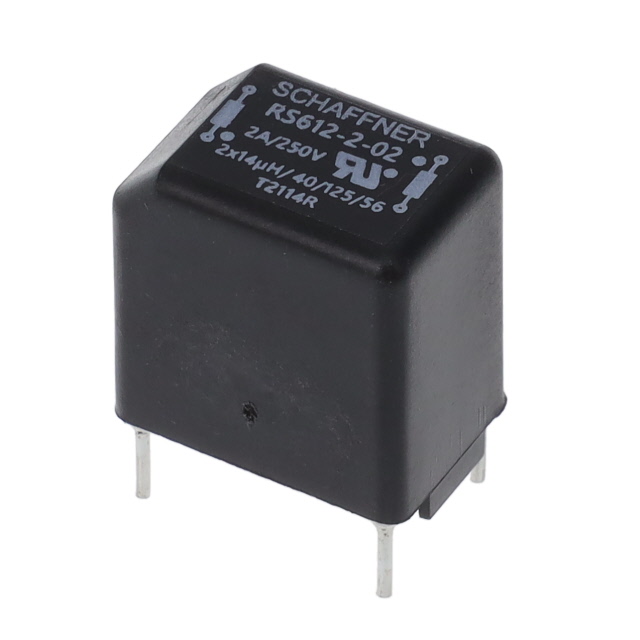

The Schaffner RS612-2-02 is a single-phase common mode choke designed for electromagnetic interference suppression. It features an inductance of 13 µH and supports a maximum current of 2 A. The component utilizes through-hole mounting with two leads, suitable for printed circuit board integration. It operates within a temperature range of -40°C to +100°C and is rated for voltages up to 250 VAC or 400 Hz applications.
Feature Summary
- Provides common mode noise attenuation for single-phase circuits
- Supports through-hole PCB mounting for secure mechanical attachment
- Operates reliably across extended industrial temperature ranges
Applications
- Single-phase power line filtering
- Electromagnetic compatibility (EMC) suppression
- Industrial equipment noise reduction
Procurement Notes
Verify the manufacturer designation, as TE Connectivity acquired Schaffner EMC Inc. Ensure the part number matches the specific 13 µH inductance and 2 A rating requirements. Confirm that the through-hole package style aligns with the target printed circuit board layout and assembly processes before finalizing procurement orders.
Selection Notes
Select this component when single-stage common mode filtering is required for low-current single-phase applications. The 13 µH value provides specific attenuation characteristics distinct from higher inductance variants. Ensure the 2 A current rating meets the operational load requirements without saturation.
Part Context
This component belongs to the RS series of common mode chokes manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series offers various inductance and current combinations for different filtering needs. The RS612-2-02 specifically targets single-phase applications requiring moderate noise suppression capabilities.
Replacement Considerations
Consult official substitution lists for equivalent components with matching inductance and current ratings. Verify pinout compatibility and physical dimensions if replacing on existing boards.
FAQ
What is the inductance value of the RS612-2-02?
The inductance value is 13 µH.
Is this component suitable for three-phase applications?
No, it is designed for single-phase applications only.
