RS614-0.5-02

$2.95

Description：CMC 480UH 500MA 2LN TH
Series：RS
Mfr：Schaffner EMC Inc.
Package：Tube

SKU:202e71202247 Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 480UH 500MA 2LN TH
Series：RS
Mfr：Schaffner EMC Inc.
Package：Tube
Filter Type：Signal Line
Number of Lines：2
Current Rating (Max)：500mA (Typ)
DC Resistance (DCR) (Max)：800mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：UR, VDE
Features：-
Mounting Type：Through Hole
Size / Dimension：0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max)：0.984" (25.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：480 µH @ 1 kHz
Qualification：-
Grade：-

Download product information

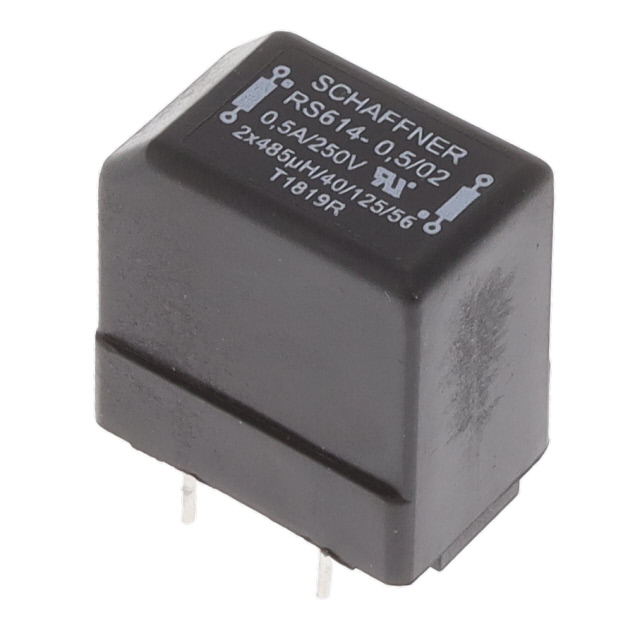

RS614-0.5-02

Overview

The RS614-0.5-02 is a common mode choke manufactured by Schaffner EMC Inc., designed for through-hole mounting. It features an inductance of 480 µH and a rated current of 500 mA. The component is constructed as a two-line (2LN) filter intended to suppress electromagnetic interference in single-phase circuits.

Feature Summary

Provides common mode noise suppression for signal and power lines
Designed for through-hole PCB integration

Applications

Single-phase circuit filtering
Electromagnetic interference suppression

Procurement Notes

Verify the specific manufacturer datasheet for detailed electrical characteristics, thermal limits, and mechanical dimensions. Confirm that the 480 µH inductance and 500 mA rating align with your system requirements before procurement.

Selection Notes

Select this component when a 480 µH common mode choke with a 500 mA current capacity is required for through-hole applications. Ensure the physical footprint matches the PCB layout constraints.

Part Context

This part belongs to the RS614 series of common mode chokes from Schaffner EMC Inc. The series offers various inductance and current ratings for different filtering needs within electronic assemblies.

Replacement Considerations

Consult official substitution guides or equivalent component databases to identify compatible parts with matching inductance, current, and form factor specifications.
