Product Detailed Parameters
- Description：CMC 120UH 1A 2LN TH
- Series：RS
- Mfr：Schaffner EMC Inc.
- Package：Tube
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：1A (Typ)
- DC Resistance (DCR) (Max)：200mOhm (Typ)
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：UR, VDE
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.906" L x 0.610" W (23.00mm x 15.50mm)
- Height (Max)：0.984" (25.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：120 µH @ 1 kHz
- Qualification：-
- Grade：-
Download product information
Overview

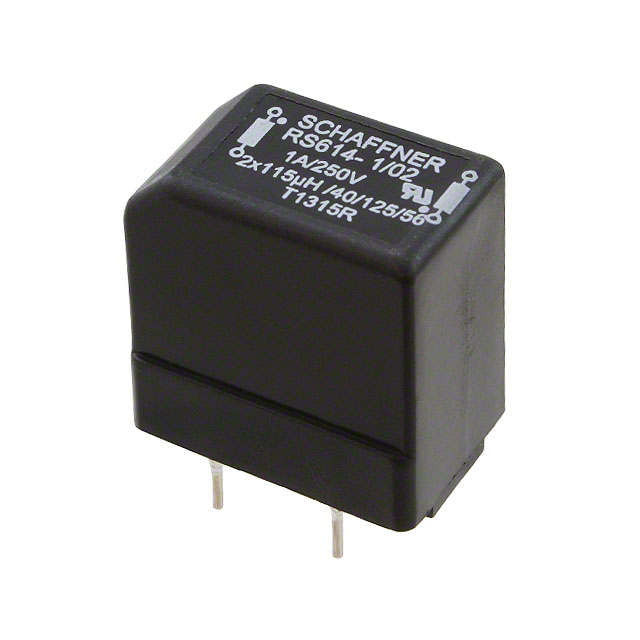

The Schaffner RS614-1-02 is a radial lead common mode choke designed for power line filtering. It features an inductance of 120 µH and supports a maximum current of 1 A. The component utilizes a two-line configuration with through-hole termination. It operates within a temperature range of -40°C to +125°C and complies with RoHS standards.
Feature Summary
- Provides effective suppression of electromagnetic interference (EMI) on power lines
- Designed for robust performance in two-line applications
- Supports high thermal stability for demanding environments
Applications
- Power supply input filtering
- Industrial equipment EMI suppression
- Consumer electronics noise reduction
Procurement Notes
Verify the specific inductance tolerance and DC resistance values against the official Schaffner datasheet before integration. Confirm that the through-hole pin spacing matches your PCB layout requirements. Ensure the operating temperature range aligns with your system's thermal profile. Cross-reference the manufacturer part number to avoid confusion with similar series components.
Selection Notes
Select this component when a compact common mode choke is required for low-current applications up to 1 A. The 120 µH inductance offers a balance between size and filtering effectiveness. Consider the radial lead format for easy insertion into standard PCB layouts. Verify compatibility with the target frequency spectrum for optimal noise attenuation.
Part Context
This component belongs to the RS614 series of common mode chokes from Schaffner EMC Inc. The series is engineered for general-purpose power line filtering. It complements other Schaffner components like the RN212 and RB series by offering a specific inductance and current rating combination suitable for smaller electronic devices.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer for direct equivalents or cross-reference with similar 120 µH, 1 A common mode chokes if necessary.
