RS614-2-02

Overview

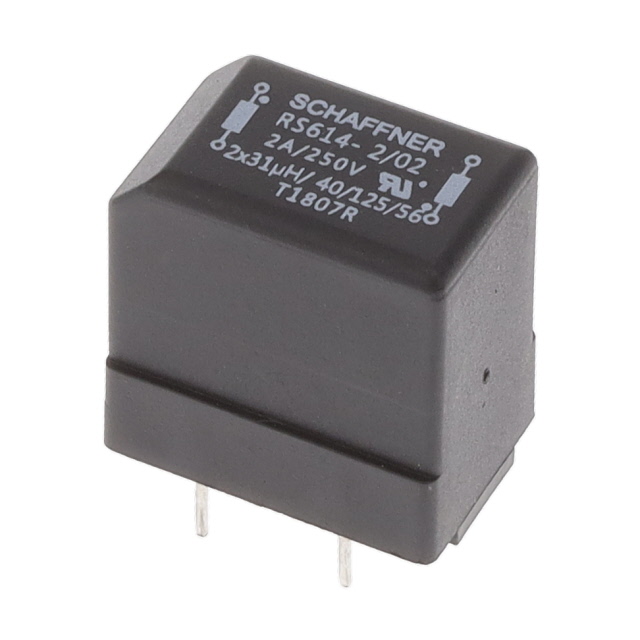

The RS614-2-02 is a single-phase electromagnetic compatibility (EMC) line filter manufactured by Schaffner EMC Inc. It is designed to reduce electromagnetic interference in electrical systems. The component features a common mode choke configuration with an inductance of 30µH and a current rating of 2A. It utilizes through-hole mounting technology for secure installation on printed circuit boards.

Feature Summary

• Single-phase EMC/EMI line filter design
• Common mode choke configuration
• Through-hole mounting technology

Applications

• High-power motor control cabinets
• HMI and display projects with external peripherals

Procurement Notes

Verify the manufacturer part number RS614-2-02 against official Schaffner documentation to ensure authenticity. Confirm that the specified 30µH inductance and 2A current ratings match your system requirements. Check for RoHS compliance status if environmental regulations apply to your deployment. Ensure the through-hole package dimensions fit your PCB layout constraints before ordering.

Selection Notes

Select this component when a single-phase solution with 2A capacity is required for noise suppression. The 30µH inductance value provides specific filtering characteristics suitable for the identified applications. Consider the physical size and through-hole pin spacing during the mechanical design phase to ensure proper board integration and thermal management.

Part Context

This component belongs to the RS614 series of EMC filters from Schaffner. The series includes variants with different inductance values and current ratings, such as the RS614-0.5-02 and RS614-4-02. These filters are engineered for general-purpose electromagnetic interference reduction in various electronic equipment.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
