RS614-4-02

Overview

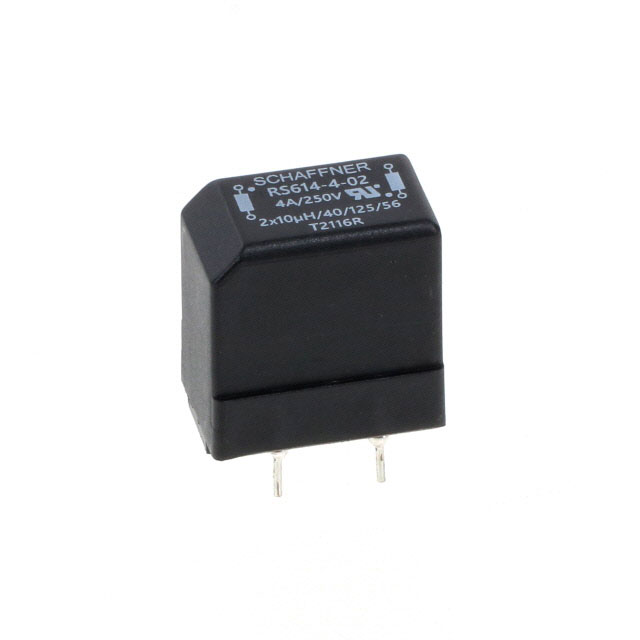

The Schaffner RS614-4-02 is a through-hole common mode choke designed for electromagnetic interference suppression. It features an inductance of 8 µH and supports a maximum current of 4 A. The component utilizes two lines and is constructed for general-purpose applications requiring reliable noise filtering in electronic circuits.

Feature Summary

• Provides effective common mode noise attenuation
• Supports dual-line signal or power paths
• Designed for through-hole mounting integration

Applications

• General-purpose EMI suppression
• Signal line filtering
• Power supply input stages

Procurement Notes

Verify the manufacturer part number RS614-4-02 against official Schaffner documentation to confirm specifications. Ensure compatibility with your circuit's current and voltage requirements before procurement. Cross-reference datasheets for mechanical dimensions and thermal characteristics.

Selection Notes

Select this component when an 8 µH inductance at 4 A is required for common mode noise reduction. Consider the through-hole package type for board assembly constraints. Verify that the operating temperature range meets your environmental conditions.

Part Context

This component belongs to the RS614 series of common mode chokes from Schaffner EMC Inc. These components are engineered for robust performance in suppressing electromagnetic interference across various electronic systems, offering a balance of electrical performance and mechanical durability.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Consult Schaffner technical support or authorized distributors for verified alternatives if this specific part number is unavailable.
