RS622-0.5-02

Overview

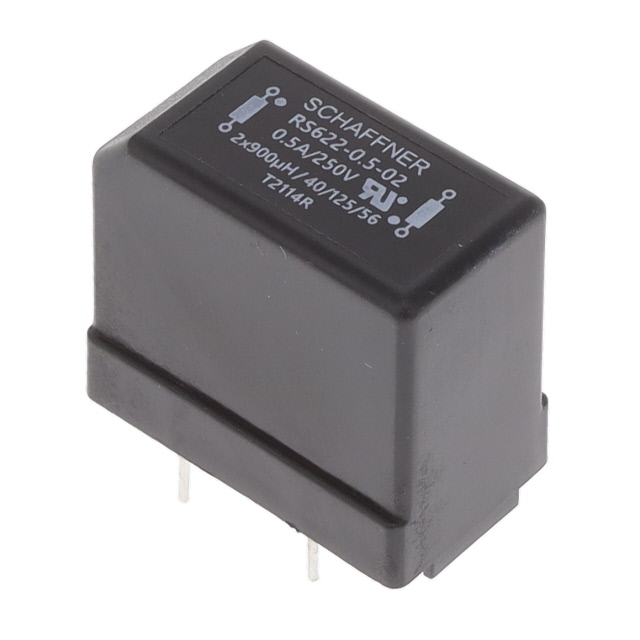

The Schaffner RS622-0.5-02 is a common mode choke designed for electromagnetic interference suppression in single-phase circuits. It features a nominal inductance of 900 µH and supports a continuous current rating of 500 mA. The component utilizes through-hole termination for printed circuit board mounting. It operates within a temperature range of -40°C to +100°C, ensuring reliability in various industrial environments.

Feature Summary

• Provides effective common mode noise attenuation for sensitive electronic loads
• Supports reliable operation across extended industrial temperature ranges
• Facilitates secure mechanical integration via through-hole PCB mounting

Applications

• Power supply input filtering for low-power electronic devices
• Noise suppression in single-phase AC/DC converter stages
• Electromagnetic compatibility enhancement in consumer electronics

Procurement Notes

Verify the exact part number RS622-0.5-02 against manufacturer datasheets to confirm inductance and current ratings. Ensure the selected variant matches the required through-hole footprint and thermal specifications for the target application environment before finalizing procurement.

Selection Notes

Select this component when a 900 µH common mode choke with 500 mA capacity is required for single-phase applications. Consider the through-hole package constraint and operating temperature limits relative to the system's thermal design and space availability on the printed circuit board.

Part Context

This component belongs to the Schaffner EMC common mode choke series, which focuses on EMI suppression for power lines. The RS622 designation indicates specific magnetic core characteristics tailored for general-purpose noise reduction in compact electronic assemblies requiring robust interference mitigation.

Replacement Considerations

Cross-reference with other 900 µH, 500 mA common mode chokes from manufacturers like TDK or Murata. Verify pinout compatibility and physical dimensions to ensure direct replacement without modifying the existing printed circuit board layout.
