RS622-2-02

Overview

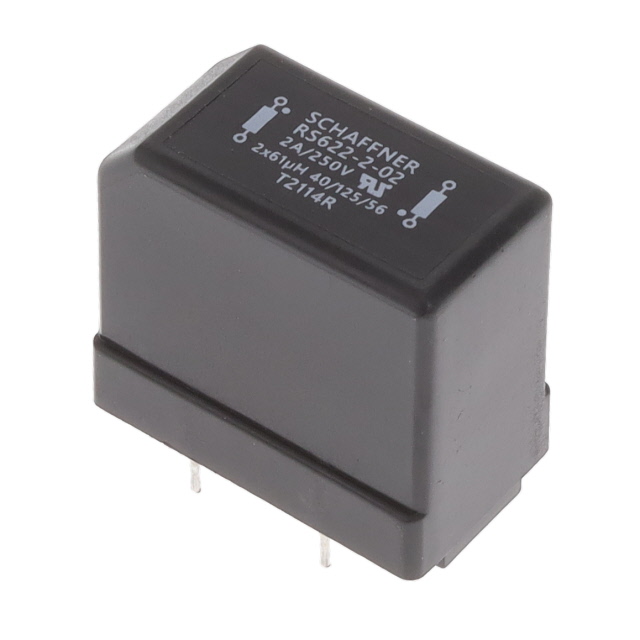

The RS622-2-02 is a through-hole common mode choke from the Schaffner RS622 series, designed for power line applications. It features a 55µH inductance and supports a current rating of 2A with a two-line configuration. The component operates within a temperature range of -40°C to +100°C and utilizes a vertical leaded package suitable for standard PCB mounting.

Feature Summary

• Provides effective common mode noise suppression for power lines
• Designed for through-hole printed circuit board mounting
• Constructed for reliable operation across wide industrial temperature ranges

Applications

• Power line filtering in electronic equipment
• Noise suppression in industrial control systems
• EMI reduction in AC/DC power supplies

Procurement Notes

Verify availability status as this specific part number is listed as obsolete and no longer manufactured by Schaffner. Confirm technical compatibility with intended circuit requirements before sourcing substitutes. Ensure that any replacement components meet the original electrical specifications for inductance and current handling capabilities.

Selection Notes

Select this component for applications requiring robust common mode chokes in through-hole designs. Consider the 55µH inductance value and 2A current rating when matching circuit needs. Evaluate alternative sources or equivalent parts due to the discontinued manufacturing status of this specific model.

Part Context

The RS622 series comprises common mode chokes intended for general-purpose EMI filtering. These components are characterized by their vertical leaded construction and standardized pin configurations. They serve as essential passive elements for mitigating electromagnetic interference in various power distribution networks.

Replacement Considerations

Similar available substitute part numbers include 744841247. Verify that replacements match the 55µH inductance and 2A current ratings. Ensure physical dimensions and pinout compatibility for direct PCB integration.
