RSAN-2006D is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists TDK-Lambda. Its product description is LINE FILTER 250VAC/VDC 6A DIN. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for RSAN-2006D
- Description：LINE FILTER 250VAC/VDC 6A DIN
- Series：RSAN
- Mfr：TDK-Lambda
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：250V
- Voltage - Rated AC：250V
- Current：6:00 AM
- Frequency - Operating：-
- Applications：General Purpose
- Approval Agency：CSA, EN, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：DIN Rail
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Power Line Filter Modules datasheet and documents for RSAN-2006D
Power Line Filter Modules Overview

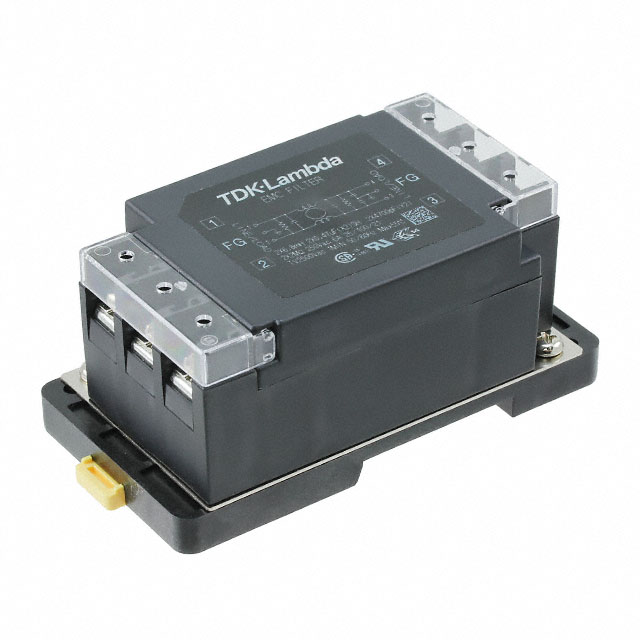

The RSAN-2006D is a single-phase power line EMC filter manufactured by TDK-Lambda. It features a rated AC voltage of 250V and a rated current of 6A. The unit supports DIN rail mounting with screw termination style. Withstand voltage is specified as AC2500V for 60 seconds between line and earth.
Power Line Filter Modules Feature Summary
- Designed for single-phase power applications to suppress electromagnetic interference
- Utilizes a robust construction suitable for industrial environments
- Provides reliable noise attenuation for sensitive electronic equipment
Power Line Filter Modules Applications
- Industrial control systems requiring EMI suppression
- Single-phase power distribution units
- Electronic equipment protection against conducted noise
Power Line Filter Modules Procurement Notes
Verify the specific part number suffix against official TDK-Lambda documentation to ensure correct configuration. Confirm that the rated voltage and current parameters align with the target circuit requirements before procurement. Check for updated compliance certifications such as UL, RoHS, or EN standards relevant to the deployment region.
Power Line Filter Modules Selection Notes
Select this component based on its 6A current rating and 250V AC capability. Ensure the installation environment supports DIN rail mounting. Verify that the required attenuation levels meet the system's EMC standards. Consider the physical dimensions and terminal type compatibility with existing busbars or wiring.
Power Line Filter Modules Part Context
This component belongs to the RSAN series of power line filters from TDK-Lambda. The series is engineered for general-purpose EMI suppression in single-phase circuits. It complements other TDK-Lambda power conditioning products used in industrial automation and machinery sectors.
Power Line Filter Modules Replacement Considerations
Consult official TDK-Lambda substitution guides for verified equivalents. Cross-reference electrical ratings and mounting styles when evaluating alternative components.
