RSAN-2030

Power Line Filter Modules Overview

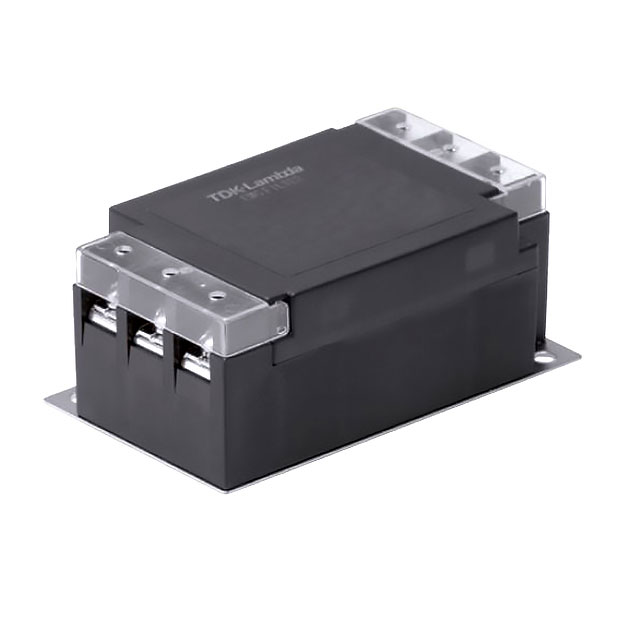

The RSAN-2030 is a single-phase EMI/EMC power line filter manufactured by TDK-Lambda. It features a rated current of 30 A and supports voltage ratings of 250 VAC and 250 VDC. Designed for chassis mounting with screw termination, the unit operates at a frequency of 60 Hz and maintains a leakage current of 1 mA. The component belongs to the RSAN series, which is certified under UL, CSA, and IEC/EN standards.

Power Line Filter Modules Feature Summary

• Provides high-voltage pulse attenuation capabilities within the RSAN series architecture.
• Offers dual certification compliance including UL, CSA, and IEC/EN safety standards.

Power Line Filter Modules Applications

• Medical equipment
• Industrial machinery
• Test and measurement instruments
• Communication systems

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official TDK-Lambda documentation to confirm exact terminal configuration and certification status. Ensure the selected variant matches the required chassis mounting style and screw termination type for the intended enclosure design.

Power Line Filter Modules Selection Notes

Select this component when a single-phase filter with a 30 A continuous current rating is required. The RSAN series is suitable for applications demanding high-voltage pulse attenuation. Confirm that the 250 VAC operating voltage aligns with the system's electrical specifications before integration.

Power Line Filter Modules Part Context

This component is part of the TDK-Lambda RSAN series of power line filters. The series is engineered for general-purpose noise suppression in sensitive electronic environments. The RSAN-2030 specifically addresses higher current requirements compared to lower-rated variants in the same family.

Power Line Filter Modules Replacement Considerations

Consult the official TDK-Lambda datasheet for verified substitute part numbers. Cross-reference current ratings and physical dimensions to ensure compatibility with existing mounting structures and circuit requirements.
