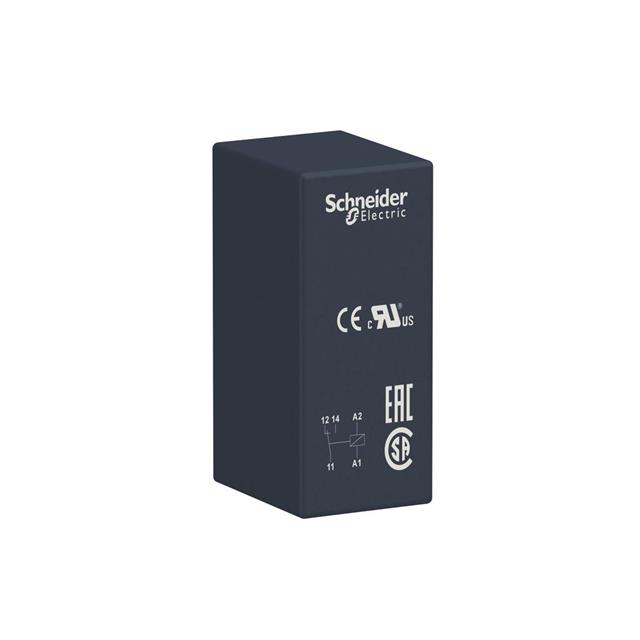

Power Relays, Over 2 Amps RSB1A120ED product image

RSB1A120ED

$6.03

Description：HARMONY, INTERFACE PLUG-IN RELAY
Series：Harmony
Mfr：Schneider Electric
Package：Box

SKU:3afab7ca8aa1 Category: Power Relays, Over 2 Amps Brand: Schneider Electric

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

RSB1A120ED is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Schneider Electric. Its product description is HARMONY, INTERFACE PLUG-IN RELAY. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for RSB1A120ED

Description：HARMONY, INTERFACE PLUG-IN RELAY
Series：Harmony
Mfr：Schneider Electric
Package：Box
Mounting Type：Socketable
Coil Voltage：48VDC
Contact Form：SPDT (1 Form C)
Contact Rating (Current)：12:00 AM
Switching Voltage：250VAC, 300VDC - Max
Load - Max Switching：3000VA, 3600W
Coil Current：8.7 mA
Coil Type：Non Latching
Features：-
Termination Style：Plug In
Seal Rating：-
Coil Insulation：-
Must Operate Voltage：38.4 VDC
Must Release Voltage：4.8 VDC
Operating Temperature：-40°C ~ 85°C
Contact Material：Silver Nickel (AgNi)
Approval Agency：CSA, EAC, UL
Relay Type：General Purpose
Grade：-
Qualification：-
Operate Time：20 ms
Release Time：20 ms

Power Relays, Over 2 Amps datasheet and documents for RSB1A120ED

RSB1A120ED
