RSEL-2002W

Power Line Filter Modules Overview

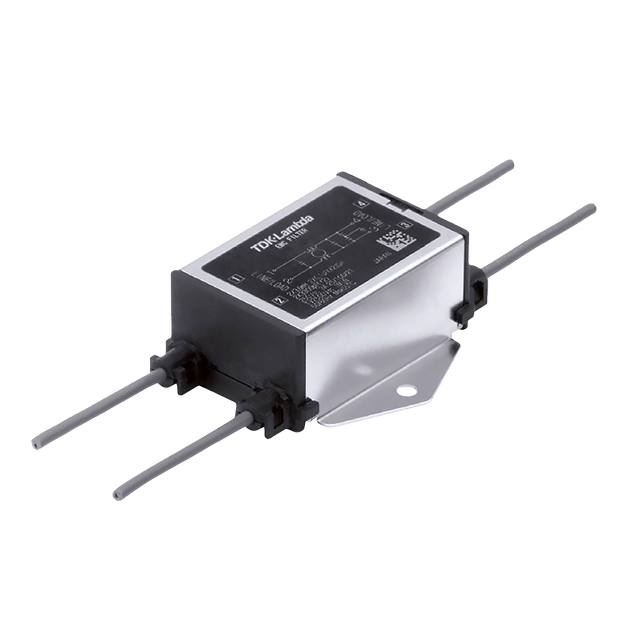

The TDK-Lambda RSEL-2002W is a single-phase EMC power line filter designed for noise suppression in electronic equipment. It features an integrated wire lead termination style and operates at a frequency of 60 Hz. The component has a current rating of 2 Amperes and a voltage rating of 250 Volts AC/DC. Key electrical specifications include a maximum leakage current of 1 mA, a minimum insulation resistance of 100 MΩ at DC 500V for 1 minute, and a maximum DC resistance of 250 mΩ. It provides dielectric strength of AC 2500V for 60 seconds between line and ground.

Power Line Filter Modules Feature Summary

• Utilizes TDK iron ferrite core material to effectively attenuate electromagnetic interference noise.
• Features a compact housing design suitable for low current requirements while maintaining good attenuation performance.
• Equipped with integrated wire leads for straightforward installation into power lines.

Power Line Filter Modules Applications

• EMC/EMI noise suppression in power lines
• Equipment requiring UL, CSA, and IEC/EN approvals
• Low current electronic devices needing compact filtering solutions

Power Line Filter Modules Procurement Notes

Verify the specific part number against official TDK-Lambda documentation to ensure compatibility with your system's voltage and current requirements. Confirm that the integrated wire lead termination meets your assembly needs. Check for required certifications such as UL, CSA, or IEC/EN depending on your regional regulations. Ensure the operating frequency matches your application's 60 Hz requirement. Validate insulation resistance and leakage current limits against safety standards.

Power Line Filter Modules Selection Notes

Select this filter when a single-phase solution is needed for 2A circuits at 250V AC/DC. Consider its compact form factor if space is limited. Ensure the application benefits from iron ferrite core attenuation characteristics. Verify that the integrated wire leads are compatible with your wiring infrastructure. Confirm that the specified leakage current and insulation resistance meet your safety compliance goals.

Power Line Filter Modules Part Context

The RSEL-2002W belongs to the RSEL series of single-phase EMC filters from TDK-Lambda. This series offers rated voltages up to 250Vac and current ranges from 0.5 to 6A. The series is characterized by compact housings and effective noise attenuation using TDK's proprietary iron ferrite materials, targeting applications with low current demands.

Power Line Filter Modules Replacement Considerations

Consult official TDK-Lambda substitution guides for verified alternatives. Ensure any replacement maintains identical current, voltage, and termination specifications. Verify that substitute components hold the same regulatory approvals (UL, CSA, IEC/EN). Do not assume cross-compatibility without manufacturer confirmation.
