RSEN-2030L

Power Line Filter Modules Overview

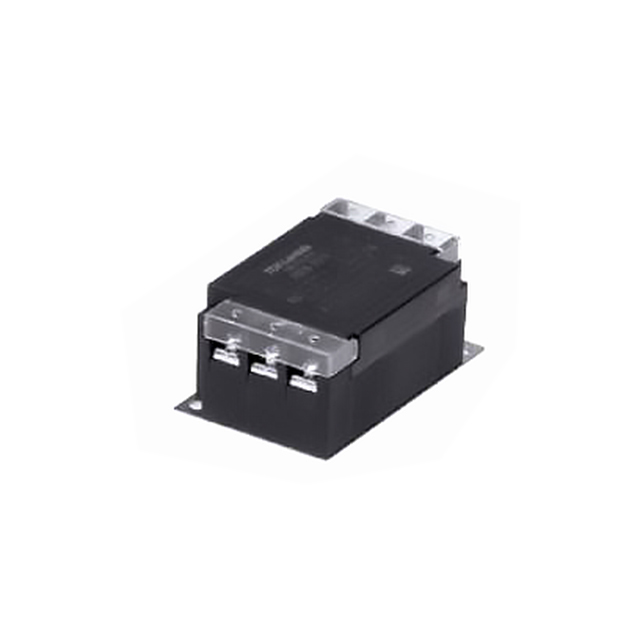

The RSEN-2030L is a single-phase EMI/EMC power line filter manufactured by TDK-Lambda. It features a chassis mount design with screw termination for secure electrical connections. The unit is rated for a continuous current of 30 A and operates at voltages up to 250 VAC and 250 VDC. Designed for a working frequency of 60 Hz, the filter exhibits a leakage current of 1 mA. It complies with UL, CSA, and IEC/EN safety standards.

Power Line Filter Modules Feature Summary

• Single-stage EMI/EMC filtering capability for single-phase AC power lines
• Chassis mount construction with screw terminal connections
• Compliance with major international safety certifications including UL, CSA, and IEC/EN

Power Line Filter Modules Applications

• Industrial machinery power input stages
• Medical equipment power supplies
• Commercial IT infrastructure power distribution

Power Line Filter Modules Procurement Notes

Verify the specific datasheet revision and certification marks (UL, CSA, IEC/EN) against the latest official TDK-Lambda documentation before integration. Confirm that the chassis mounting hardware and screw torque specifications meet your assembly requirements. Ensure the 30 A current rating and 250 VAC voltage limits align with the system's maximum operational parameters to maintain compliance and safety margins.

Power Line Filter Modules Selection Notes

Select this component when a single-phase, high-current (30 A) EMI filter is required for chassis-mounted installations. The screw terminal interface suits applications needing robust mechanical connections. Verify that the 1 mA leakage current meets the safety constraints of the downstream equipment. This model is appropriate for environments requiring certified protection against electromagnetic interference on 60 Hz power lines.

Power Line Filter Modules Part Context

The RSEN-2030L belongs to the RSEN series of power line filters from TDK-Lambda. This series provides standardized EMC solutions for industrial and commercial applications. The component serves as a critical interface between the AC mains supply and sensitive electronic loads, ensuring regulatory compliance by attenuating conducted noise.

Power Line Filter Modules Replacement Considerations

Consult the official TDK-Lambda replacement guide for verified substitute part numbers. Do not assume cross-compatibility with other series without verifying pinout, mounting dimensions, and electrical ratings.
