RSEN-2250

Power Line Filter Modules Overview

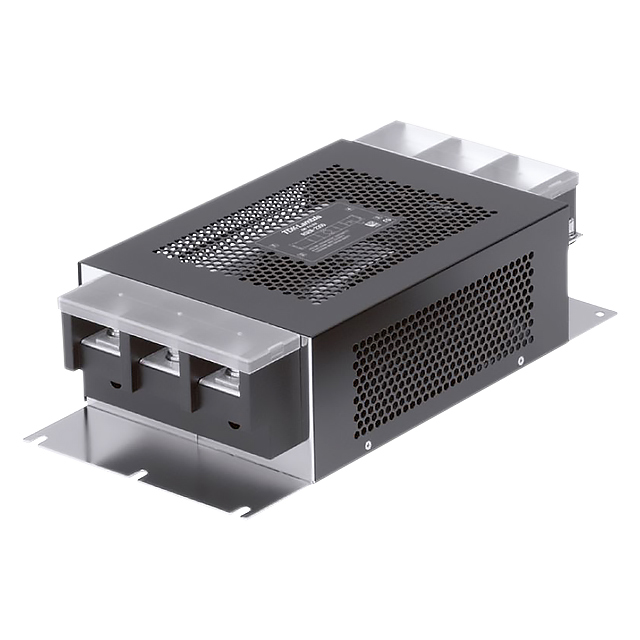

The TDK-Lambda RSEN-2250 is a single-phase EMC/EMI power line filter designed for high-current industrial applications. It features a rated current of 250A and operates with an AC voltage rating of 250V. The unit utilizes a terminal block connection style and is engineered for single-stage noise suppression. Designed for robust performance, it supports an operating frequency of 60 Hz and is constructed as a standalone module suitable for integration into various electrical systems requiring significant current handling capabilities.

Power Line Filter Modules Feature Summary

• Engineered for high-capacity single-phase power line filtering
• Utilizes terminal block connections for secure installation
• Provides single-stage EMI/EMC noise suppression
• Designed for operation at standard 60 Hz frequencies

Power Line Filter Modules Applications

• Industrial machinery power distribution
• High-current equipment protection
• Electrical panel integration

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version to confirm exact physical dimensions and terminal torque specifications. Ensure the application environment matches the rated voltage and current limits. Confirm compliance requirements such as UL or IEC standards are met for your region. Check for any specific mounting hardware requirements not included in the standard package.

Power Line Filter Modules Selection Notes

Select this model when a single-phase filter capable of handling 250A is required. Consider the terminal block interface for wiring compatibility. Evaluate space constraints against the module's physical footprint. Ensure the system voltage does not exceed the 250V AC rating. Verify that single-stage attenuation meets the electromagnetic compatibility needs of the installation.

Power Line Filter Modules Part Context

The RSEN series from TDK-Lambda comprises a range of power line filters designed for demanding industrial environments. These components are part of a broader portfolio offering various current ratings and form factors. The series is known for providing reliable noise suppression in applications where stable power quality is critical for sensitive electronic loads and regulatory compliance.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility carefully if considering alternative brands or series due to differences in current ratings, physical dimensions, and certification approvals.
