RSEV-2006

Power Line Filter Modules Overview

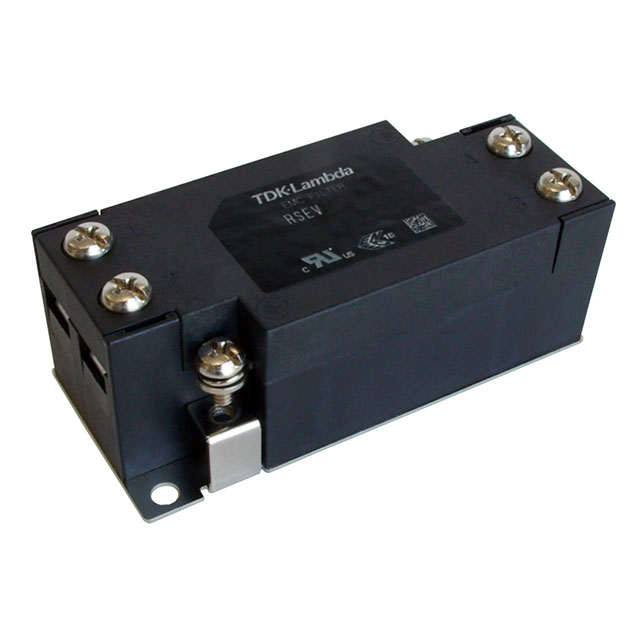

The TDK-Lambda RSEV-2006 is a single-phase power line EMC filter designed for AC/DC 250V applications with a rated current of 6A. It features a low-profile design measuring 85 mm in length, 39 mm in width, and 30 mm in height, weighing 150 g. The unit utilizes M4 captive screw terminals for secure connection and offers a maximum DC resistance of 110 mΩ. It withstands AC 2500V between terminals and chassis for one minute and maintains an insulation resistance of at least 100 MΩ at DC 500V. Leakage current is limited to ≤1 mA at 250VAC 60Hz. Operating temperatures range from -25°C to +85°C, with derating required above 55°C.

Power Line Filter Modules Feature Summary

• Integrated terminal block with captive screws for secure mounting
• Compact low-profile form factor suitable for space-constrained installations
• Conforms to UL, CSA, and EN safety agency certifications

Power Line Filter Modules Applications

• Single-phase power supply input filtering
• Industrial equipment noise suppression
• Medical device power conditioning

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version against the manufacturer's official documentation to ensure compliance with current safety standards such as UL 1283 and EN 60939-3. Confirm that the operating environment temperature does not exceed 55°C without applying appropriate derating factors as specified in the technical guidelines. Ensure the installation flange and terminal torque specifications are strictly followed to maintain electrical integrity and safety certification validity.

Power Line Filter Modules Selection Notes

Select this component when a single-phase filter with a 6A rating and 250V voltage capability is required. The low-profile design makes it suitable for applications where vertical space is limited. Verify that the application requires screw termination rather than PCB mount options. Ensure the system operates within the specified frequency range and that the leakage current limits comply with relevant medical or industrial safety regulations.

Power Line Filter Modules Part Context

The RSEV-2006 belongs to the RSEN series of power line filters manufactured by TDK-Lambda. This series is engineered for general-purpose electromagnetic interference suppression in single-phase AC and DC circuits. The product is part of a broader portfolio of EMI filters designed to meet international safety and performance standards for electronic equipment power inputs.

Power Line Filter Modules Replacement Considerations

Consult official substitution guides for compatible models within the RSEN series. Verify that any alternative part matches the 6A current rating, 250V voltage rating, and physical dimensions for direct replacement.
