RSF-433.920-1600-3030-TR-NS2

Overview

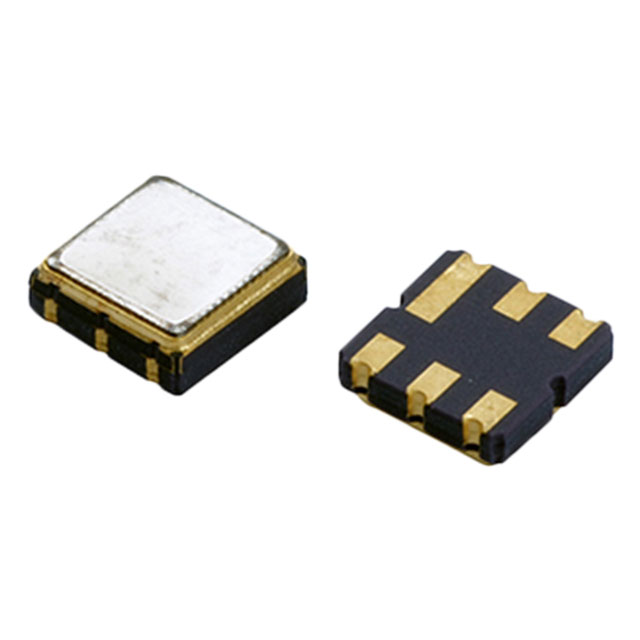

The RSF-433.920-1600-3030-TR-NS2 is a Surface Acoustic Wave (SAW) filter manufactured by Raltron Electronics, designed for general-purpose RF applications. It operates at a center frequency of 433.92 MHz with a bandwidth of 1.6 MHz and an insertion loss of 2.4 dB. The component utilizes a 6-terminal surface-mount package measuring 3.0 x 3.0 mm. It supports an operating temperature range from -45°C to 125°C and is supplied in tape and reel packaging.

Feature Summary

• Utilizes Surface Acoustic Wave technology for signal filtering
• Designed for general-purpose RF applications
• Supports wide industrial temperature operation

Applications

• Remote control systems

Procurement Notes

Verify the complete part number including suffixes against official manufacturer documentation to ensure correct specifications. Confirm that the required operating temperature range and package dimensions align with your design constraints. Ensure compatibility with standard surface-mount assembly processes for 6-terminal components.

Selection Notes

Select this component when a SAW filter is required for 433.92 MHz signals with specific bandwidth constraints. Consider the 3.0 x 3.0 mm footprint for space-limited designs. Evaluate the insertion loss and temperature stability requirements against the datasheet specifications before integration into the circuit.

Part Context

This component belongs to Raltron's SAW filter series, specifically tailored for ISM band applications. It represents a standard solution for filtering noise in wireless communication devices operating at 433.92 MHz. The 6-pin SMD configuration allows for automated placement in high-volume manufacturing environments.

Replacement Considerations

Consult official substitution guides for compatible alternatives. Verify electrical parameters such as center frequency, bandwidth, and insertion loss match the original design requirements before considering any substitute parts.
