RSF-915.000-26000-3030-TR-NS3

Overview

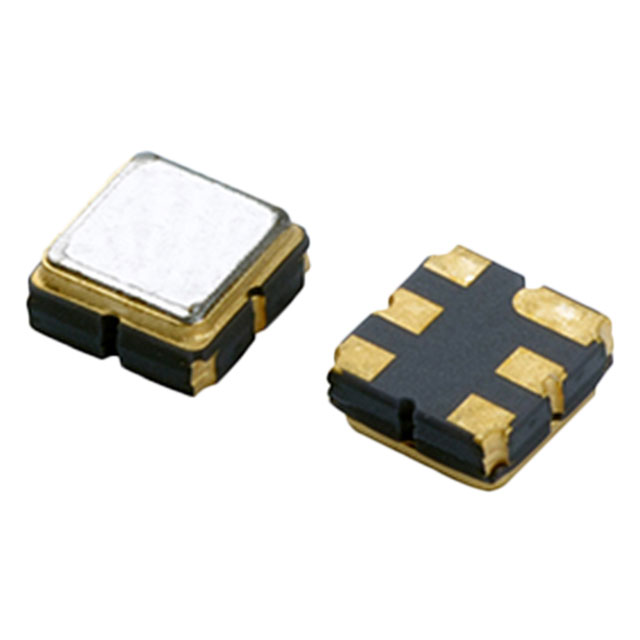

The RSF-915.000-26.000-3030-TR-NS3 is a Surface Acoustic Wave (SAW) filter manufactured by Raltron Electronics, designed for general-purpose RF applications at the 915 MHz frequency. This component features a bandwidth of 26 MHz and insertion loss characteristics typically ranging between 2.2 dB and 2.6 dB. It is housed in a compact 6-SMD package with dimensions of 3.0 mm x 1.3 mm x 3.0 mm, suitable for surface mount technology integration.

Feature Summary

• Surface Acoustic Wave technology for precise RF filtering
• Optimized for ISM band operations including LoRa and SIGFOX
• Compact 6-SMD package design for space-constrained PCB layouts

Applications

• ISM Band communication systems
• LoRa wireless networks
• SIGFOX IoT devices

Procurement Notes

Verify the exact part number against manufacturer documentation to ensure correct suffix alignment, as variations may exist. Confirm that the specific NS3 designation matches your supply chain requirements. Cross-reference technical specifications with official datasheets prior to procurement to validate performance parameters for your specific RF application environment.

Selection Notes

Select this component when a 915 MHz center frequency with 26 MHz bandwidth is required for ISM band applications. The 6-SMD footprint suits designs needing minimal board space. Ensure compatibility with existing RF front-end architectures supporting SAW filter interfaces. Validate insertion loss tolerances against system sensitivity requirements before finalizing the bill of materials.

Part Context

This SAW filter belongs to Raltron's extensive family of RF components tailored for industrial, scientific, and medical bands. It supports emerging IoT protocols like LoRa and SIGFOX, providing reliable signal conditioning for low-power wide-area network implementations within the global 915 MHz regulatory spectrum allocations.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Consult manufacturer cross-reference guides or authorized distributor databases for compatible alternatives if this specific variant becomes unavailable.
