Product Detailed Parameters
- Description：FILTER SAW 916.5MHZ 5SMD
- Series：RSF
- Mfr：Raltron Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Frequency - Center：916.5MHz
- Bandwidth：5.2MHz
- Insertion Loss：2.8dB
- Ratings：-
- Applications：General Purpose
- Mounting Type：Surface Mount
- Package / Case：5-SMD, No Lead
- Height (Max)：0.024" (0.60mm)
- Size / Dimension：0.055" L x 0.043" W (1.40mm x 1.10mm)
Download product information
Overview

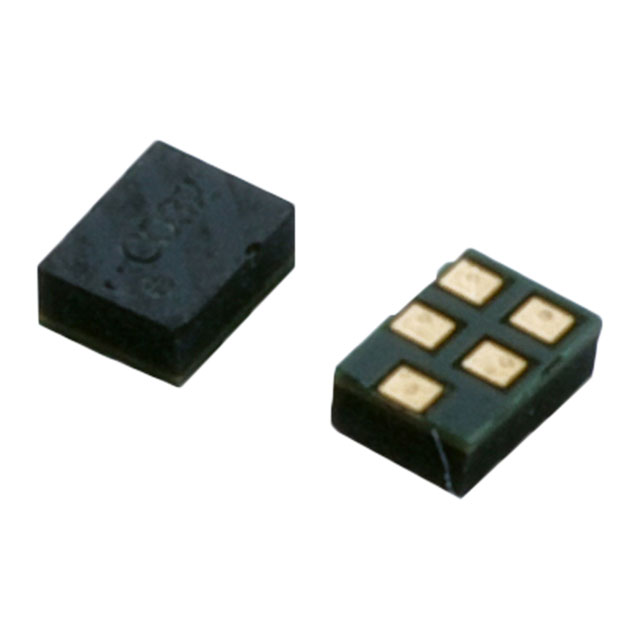

The RSF-916.500-5200-1411-TR-NS3 is a surface acoustic wave (SAW) filter manufactured by Raltron Electronics, designed for precise signal filtering in electronic circuits. It operates at a center frequency of 916.5 MHz and features a 5-SMD package with no lead configuration. The component measures 1.40 mm in length, 0.60 mm in width, and has a maximum height of 0.60 mm. Key electrical specifications include an insertion loss of 2.8 dB and bandwidth tolerances of -1.8 dB and 2.2 dB. This device is suitable for applications requiring compact, high-frequency filtering solutions.
Feature Summary
- Surface acoustic wave technology for efficient signal filtering
- Compact 5-SMD package design for space-constrained applications
- Optimized for 916.5 MHz center frequency operation
Applications
- RF front-end modules
- Wireless communication systems
- Signal processing circuits
Procurement Notes
Verify the exact part number RSF-916.500-5200-1411-TR-NS3 against official Raltron Electronics documentation to ensure compatibility. Confirm package dimensions and electrical parameters match application requirements. Check for authorized distributors to avoid counterfeit components. Ensure storage and handling procedures comply with manufacturer guidelines for surface mount devices.
Selection Notes
Select this SAW filter when a 916.5 MHz center frequency is required with low insertion loss. Consider the 5-SMD package size for PCB layout constraints. Evaluate thermal performance and operating temperature range against system specifications. Compare alternative filters if different bandwidth or frequency characteristics are needed.
Part Context
This component belongs to the RSF series of SAW filters from Raltron Electronics, which offers various frequencies and package options. The RSF series is known for its reliability and performance in RF applications. Similar parts in the series may differ in center frequency, bandwidth, or package type, so specific datasheet verification is essential for substitution or parallel selection.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided data. Consult Raltron Electronics directly for potential alternatives or cross-reference with other manufacturers' SAW filters offering similar 916.5 MHz specifications and 5-SMD packaging.
