Product Detailed Parameters
- Description：FILTER SAW 942.5MHZ 6SMD
- Series：RSF
- Mfr：Raltron Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Frequency - Center：942.5MHz
- Bandwidth：35MHz
- Insertion Loss：4.5dB
- Ratings：-
- Applications：General Purpose
- Mounting Type：Surface Mount
- Package / Case：6-SMD, No Lead
- Height (Max)：0.059" (1.50mm)
- Size / Dimension：0.118" L x 0.118" W (3.00mm x 3.00mm)
Download product information
Overview

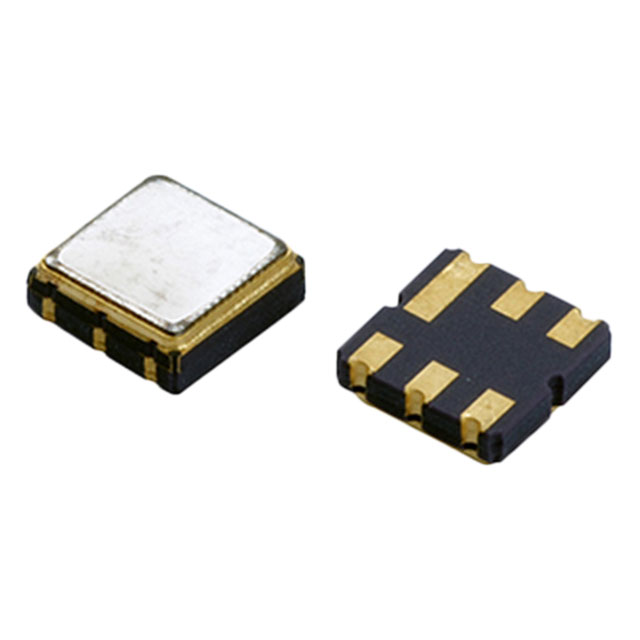

The RSF-942.500-35000-3030-TR-NS3 is a general-purpose RF Surface Acoustic Wave (SAW) filter manufactured by Raltron Electronics. It operates at a center frequency of 942.5 MHz with a bandwidth of 35 MHz, covering a range from 0.925 to 0.960 GHz. The device features an insertion loss of 4.5 dB and is housed in a compact 6-SMD, 1212 (3.0 x 3.0 mm) package.
Feature Summary
- Surface Acoustic Wave technology for efficient RF signal filtering
- Designed for general-purpose applications requiring precise frequency selection
- Compact 1212 surface-mount package suitable for space-constrained designs
Applications
- RF filters for cellular phones
- General purpose RF signal processing
- Wireless communication systems operating near 900 MHz bands
Procurement Notes
Verify the complete part number including suffixes against official Raltron documentation to ensure correct specifications. Confirm package dimensions and pin configuration match design requirements. Check for environmental compliance certifications such as RoHS status in the latest datasheet before finalizing procurement decisions.
Selection Notes
Select this component when a 942.5 MHz center frequency and 35 MHz bandwidth are required for RF filtering. Ensure the 4.5 dB insertion loss meets system sensitivity targets. The 1212 footprint must align with PCB layout constraints. Verify compatibility with assembly processes for 6-pin SMD components.
Part Context
This SAW filter belongs to Raltron's extensive family of RF filters designed for wireless communications. It serves as a band-pass filter solution for applications requiring stable performance in the sub-GHz frequency range. The product line emphasizes reliability and miniaturization for modern electronic devices.
Replacement Considerations
Consult official substitution guides or contact Raltron Electronics directly for verified alternative part numbers. Do not assume cross-compatibility with other manufacturers' SAW filters without rigorous electrical testing and parameter matching.
