RSF5JB13R0

Overview

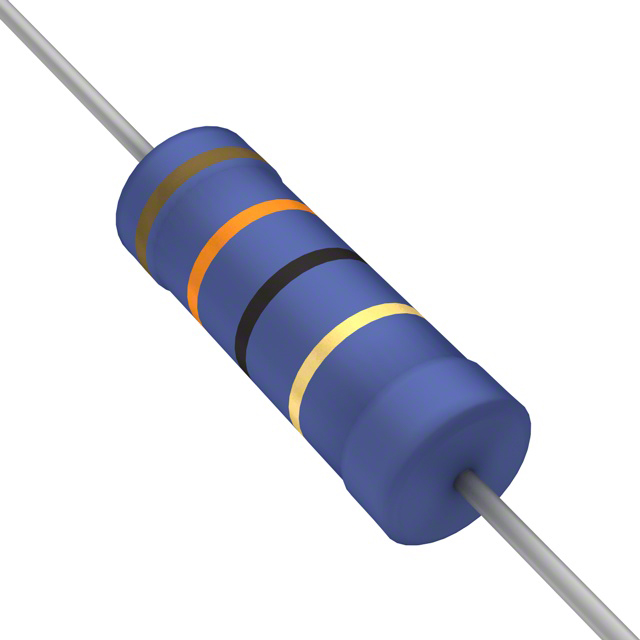

The RSF5JB13R0 is a metal oxide film resistor manufactured by SEI Stackpole. It features an axial leaded package with a resistance value of 13 Ohms and a power rating of 5 W. The component has a voltage rating of 1 kV, a tolerance of ±5%, and a temperature coefficient of 200 PPM/°C. Physical dimensions include an 8 mm diameter and 24.5 mm length. It operates within a temperature range of -55°C to +235°C and is designed for PCB mount applications.

Feature Summary

• Constructed using metal oxide film technology for robust performance
• Features flameproof construction to enhance circuit safety
• Designed for general purpose electronic applications

Applications

• General purpose electronic circuits
• PCB mounting applications
• Industrial equipment requiring high reliability

Procurement Notes

Verify the specific tolerance designation in official datasheets, as some listings may indicate variations. Confirm RoHS compliance status directly with the manufacturer or authorized distributors before integration. Ensure the axial lead spacing matches the target PCB layout requirements. Check for any recent product change notices that might affect packaging or material composition.

Selection Notes

Select this component when a 5 W power rating and 13 Ohm resistance are required in an axial form factor. Consider the 200 PPM/°C temperature coefficient for thermal stability needs. Evaluate the 1 kV voltage rating against peak circuit voltages. Compare physical dimensions against available board space constraints.

Part Context

This part belongs to the RSF series of metal oxide resistors from SEI Stackpole. The series is characterized by flameproof construction and high overload capabilities. It serves as a standard solution for general purpose applications where reliability and safety are prioritized over precision.

Replacement Considerations

RSF5JT13R0: Metal oxide resistor with reel packaging instead of bulk.
