RSF5JB16R0

Overview

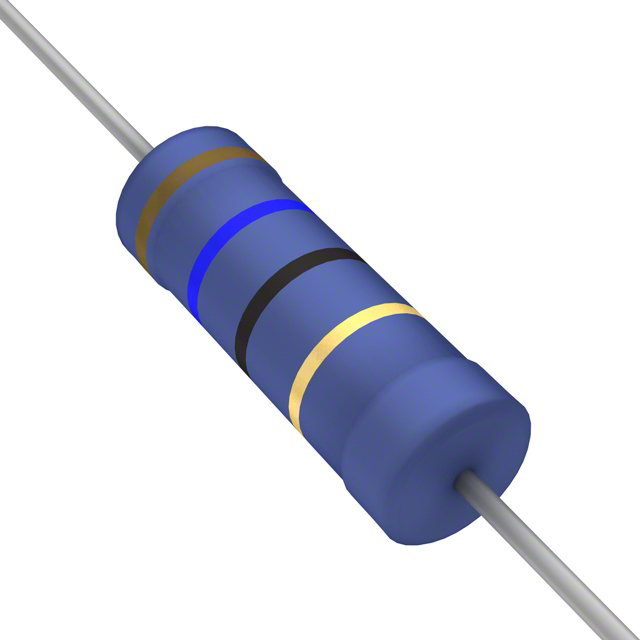

The RSF5JB16R0 is a metal oxide film resistor manufactured by SEI Stackpole. It features a resistance value of 16 Ohms with a tolerance of ±5%. The component has a power rating of 5 W and a voltage rating of 1 kV. It utilizes axial termination and operates within a temperature range of -55°C to +235°C. The temperature coefficient is 200 PPM/°C. Physical dimensions include an 8 mm diameter and 17.5 mm length.

Feature Summary

• Constructed using metal oxide film technology for robust performance.
• Designed for general purpose applications in electronic circuits.
• Features flame-proof construction for enhanced safety.

Applications

• General purpose circuit protection
• Current sensing applications
• Load dumping circuits

Procurement Notes

Verify the specific manufacturer designation, as SEI Stackpole produces this component. Confirm compliance with RoHS directives through official documentation. Ensure the axial lead style matches the target PCB layout requirements. Validate the 5 W power rating against thermal management constraints in the final assembly design.

Selection Notes

Select this component when high pulse load capability and stability are required. The metal oxide construction offers superior performance compared to carbon composition alternatives. Consider the 1 kV voltage rating for higher potential applications. Verify that the operating temperature range meets the environmental conditions of the intended deployment site.

Part Context

This resistor belongs to the RSF_RSMF series from SEI Stackpole. The series is characterized by metal oxide film technology designed for reliability. It serves as a standard fixed resistor option for through-hole mounting. The product line emphasizes durability and consistent electrical characteristics over time.

Replacement Considerations

Substitutes must match the 16 Ohm resistance, 5 W power rating, and 5% tolerance. Axial leaded metal oxide resistors from other manufacturers may be compatible if physical dimensions and voltage ratings align. Verify temperature coefficient compatibility for precision applications.
