RSF5JB5R10

Overview

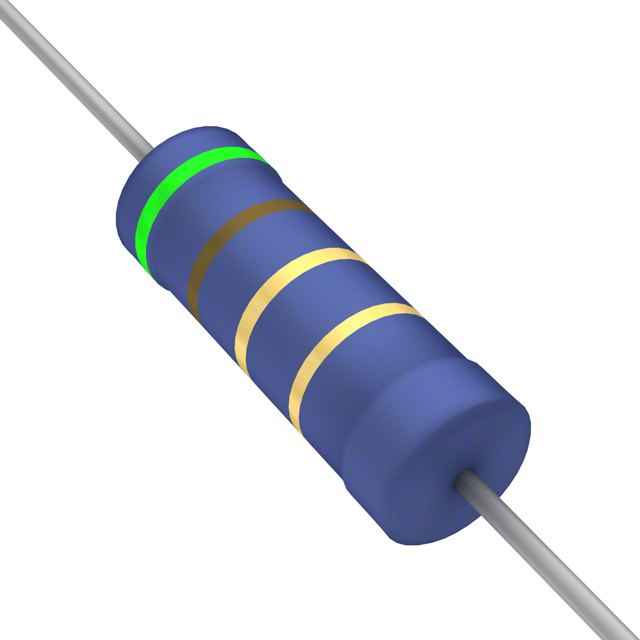

The RSF5JB5R10 is a through-hole metal oxide film resistor manufactured by Stackpole Electronics Inc. It features a resistance value of 5.1 Ohms with a tolerance of ±5%. The component has a power rating of 5W and operates within a temperature range of -55°C to +235°C. It utilizes an axial package with flame retardant coating for safety compliance.

Feature Summary

• Constructed using metal oxide film technology for stable performance
• Features flame retardant coating to meet safety standards
• Designed for general purpose applications in electronic circuits

Applications

• General purpose electronic circuits
• Power supply units
• Industrial control systems

Procurement Notes

Verify the specific suffix JB indicates flame retardant coating rather than standard finish. Confirm RoHS3 compliance status as required by project specifications. Ensure axial lead dimensions match PCB layout requirements before finalizing procurement orders.

Selection Notes

Select this component when a 5W metal oxide resistor with flame retardant properties is required. Compare against RSF5JT series if standard coating suffices. Verify voltage ratings align with circuit operating conditions to ensure long-term reliability under load.

Part Context

This part belongs to the RSF series of metal oxide resistors from Stackpole Electronics. It shares the same physical form factor and core material characteristics as other RSF variants, differing primarily in resistance value and specific coating type indicated by the suffix.

Replacement Considerations

• RSF5JT5R10

FAQ

What does the 'JB' suffix indicate?

The 'JB' suffix denotes that the resistor has a flame retardant coating.

Is this component RoHS compliant?

Stackpole's RSF series is generally compliant with RoHS3 directives; verify specific batch documentation.
