RSHN-2020

Power Line Filter Modules Overview

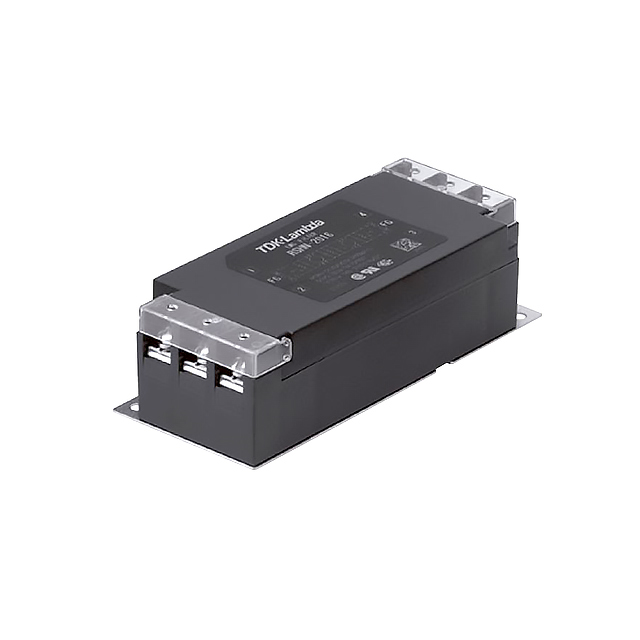

The TDK-Lambda RSHN-2020 is a single-phase EMC power line filter designed for panel mounting. It features a two-stage filtering architecture to provide effective attenuation of electromagnetic interference in AC power circuits. The unit is rated for a continuous current of 20 A and operates at voltages up to 250 VAC. It utilizes terminal block connections for secure wiring and is engineered for operation within standard industrial frequency ranges.

Power Line Filter Modules Feature Summary

• Two-stage EMI/EMC filtering architecture
• Panel mount installation style
• Terminal block connection interface

Power Line Filter Modules Applications

• Industrial machinery power supplies
• Medical equipment input stages
• Test and measurement instrumentation

Power Line Filter Modules Procurement Notes

Verify the specific datasheet revision to confirm leakage current specifications and insertion loss curves relevant to your frequency range. Ensure the terminal block torque specifications are met during installation to maintain electrical safety and signal integrity under the rated 20 A load.

Power Line Filter Modules Selection Notes

Select this component when a compact, high-current solution is required for single-phase AC lines. The RSHN series offers a balance of performance and physical footprint. Confirm that the 20 A rating aligns with the maximum load current and that the 250 VAC rating exceeds the system's peak operating voltage.

Power Line Filter Modules Part Context

This component belongs to the RSHN series of power line filters from TDK-Lambda. The series provides various current ratings for single-phase applications, utilizing a standardized panel-mount form factor. These filters are part of TDK-Lambda's broader portfolio of electromagnetic compatibility solutions for industrial and commercial power systems.

Power Line Filter Modules Replacement Considerations

Consult official cross-reference lists for direct replacements. Verify that any substitute matches the 20 A current rating, 250 VAC voltage rating, and terminal block configuration to ensure mechanical and electrical compatibility without redesigning the enclosure or wiring harness.
