RSMF2FB15R0

Overview

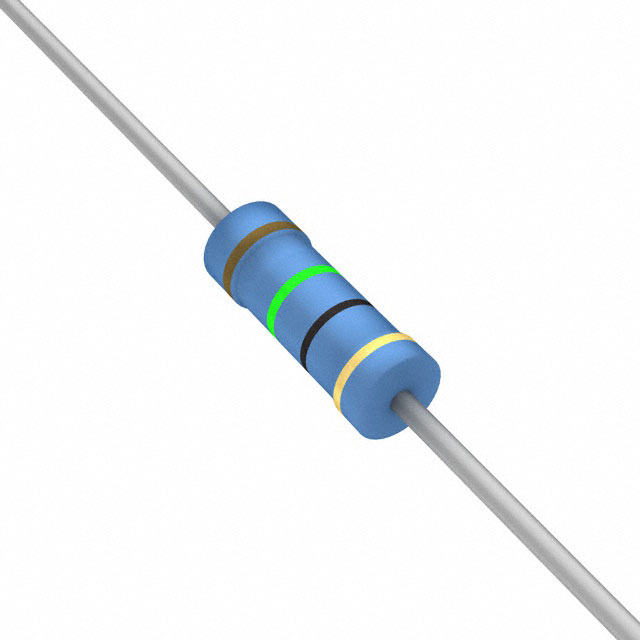

The RSMF2FB15R0 is a fixed metal oxide film resistor manufactured by Stackpole Electronics Inc. It features an axial through-hole mounting style with a resistance value of 15 ohms and a tolerance of ±1%. The component has a power rating of 2W, a maximum working voltage of 350V, and a temperature coefficient of ±200ppm/°C. It operates within a temperature range of -55°C to 235°C and measures 4.5mm in diameter by 15mm in length.

Feature Summary

• Flameproof construction for enhanced safety
• Compliant with UL 94V-0 coating standards
• RoHS compliant, lead-free, and halogen-free composition

Applications

• General purpose electronic circuits
• Power supply units
• Industrial control systems

Procurement Notes

Verify the specific suffix 'FB' indicates the 1% tolerance variant against the manufacturer's RSF/RSMF series datasheet. Confirm the physical dimensions and terminal specifications match the design requirements before integration. Ensure compliance with RoHS and REACH regulations for the target market.

Selection Notes

Select this component for applications requiring flameproof metal oxide resistors with high reliability. The 2W power rating and wide operating temperature range support robust performance in demanding environments. Verify that the 1% tolerance meets the circuit precision requirements compared to standard 5% variants.

Part Context

This part belongs to the RSF/RSMF series of general-purpose metal oxide resistors from Stackpole Electronics. The series offers a lower-cost alternative to carbon composition and wirewound resistors while maintaining solvent test compliance per Mil Standard 202, Method 215.

FAQ

What is the maximum overload voltage for the RSMF2FB15R0?

The maximum overload voltage for the 2W RSF/RSMF series is 600V.

Is the RSMF2FB15R0 available in a tape and reel package?

Yes, the RSF/RSMF series is available in cut-and-formed products or bulk packaging; contact the factory for specific tape and reel availability on select sizes.
