RSMN-2020D

Power Line Filter Modules Overview

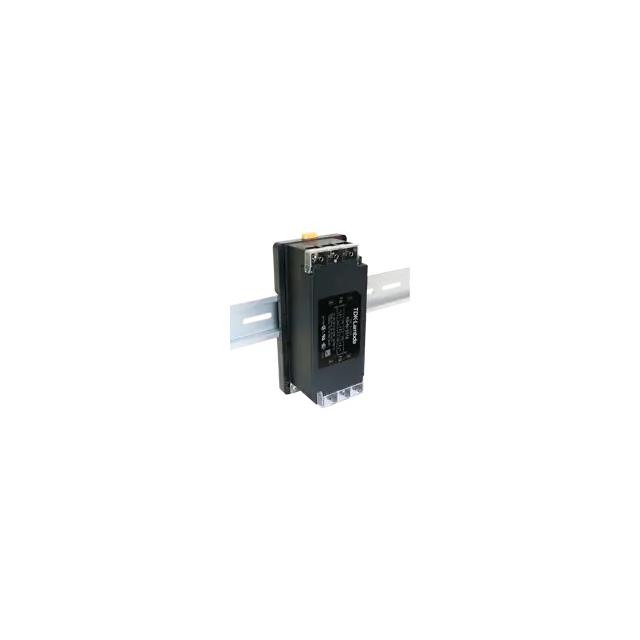

The RSMN-2020D is a power line filter manufactured by TDK-Lambda, designed for general-purpose applications. It features a rated voltage of 250V AC and 250V DC, with a current rating of 20A. The unit operates at a frequency of 60Hz and utilizes screw terminations for connection. It is certified by UL, CSA, and IEC/EN agencies.

Power Line Filter Modules Feature Summary

• High-voltage pulse compatible design
• High-attenuation noise filtering capability
• Two-stage filter configuration for enhanced performance

Power Line Filter Modules Applications

• General purpose power line filtering
• Industrial equipment noise suppression
• EMC compliance in power distribution systems

Power Line Filter Modules Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required termination types and mounting styles. Confirm that the rated voltage and current specifications align with the target circuit requirements. Check for applicable safety certifications such as UL, CSA, or IEC/EN depending on regional regulatory needs. Ensure proper handling procedures are followed during installation to maintain component integrity.

Power Line Filter Modules Selection Notes

Select this component when high-voltage pulse tolerance and significant noise attenuation are required in a compact form factor. Consider the two-stage architecture for superior EMI reduction compared to single-stage alternatives. Evaluate the 20A current capacity against peak load demands. Verify terminal block compatibility with existing wiring infrastructure before finalizing the selection.

Power Line Filter Modules Part Context

This component belongs to the RSMN series of power line filters from TDK-Lambda. The series emphasizes diverse variations and functionality, offering high-attenuation noise filtering solutions. These filters are engineered to meet stringent EMC standards while providing robust protection against electrical disturbances in various industrial and commercial environments.

Power Line Filter Modules Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official TDK-Lambda catalogs for cross-reference information or equivalent series components that match the required voltage, current, and attenuation specifications.
