RSMN-2030LD

Power Line Filter Modules Overview

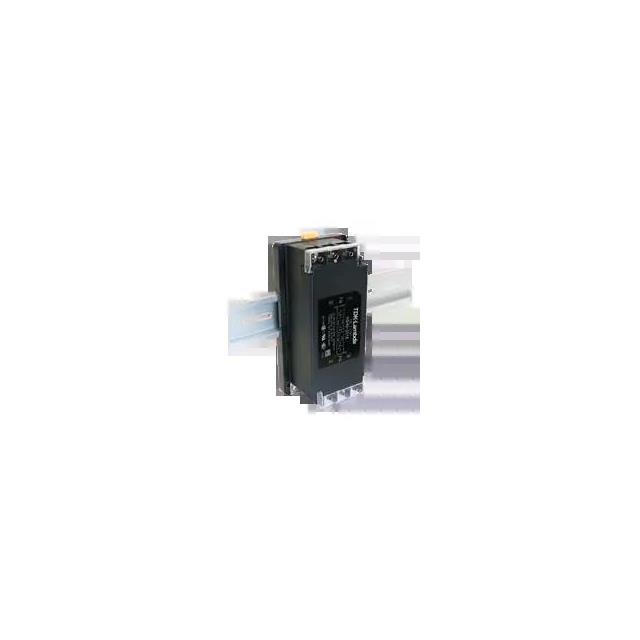

The RSMN-2030LD is a single-phase EMI/EMC power line filter manufactured by TDK-Lambda. It supports rated voltages of 250 VAC and 250 VDC with a current rating of 30 A. Designed for DIN rail mounting, it utilizes terminal block connections. The unit operates at 60 Hz and maintains a maximum leakage current of 1 mA. It complies with UL, CSA, and IEC/EN safety standards.

Power Line Filter Modules Feature Summary

• Single-stage filtering configuration for effective noise suppression
• DIN rail mounting style for standardized panel integration
• Terminal block termination for secure electrical connections

Power Line Filter Modules Applications

• Industrial machinery control panels
• Power distribution units
• Electronic equipment requiring EMC compliance

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version to confirm exact attenuation curves and physical dimensions. Ensure the installation environment meets the specified temperature range. Confirm that the terminal block torque specifications are followed during assembly to maintain connection integrity and safety certification validity.

Power Line Filter Modules Selection Notes

Select this model when a single-phase filter with a 30 A capacity is required. The DIN rail mount option simplifies installation in standard enclosures. Verify that the 250 VAC rating aligns with the system voltage. Consider the low leakage current specification if sensitive downstream equipment is present.

Power Line Filter Modules Part Context

This component belongs to the RSMN series of power line filters from TDK-Lambda. The series offers various current ratings and mounting options. The RSMN-2030LD specifically provides a balance of high current handling and compact DIN rail form factor for industrial applications.

Power Line Filter Modules Replacement Considerations

Check the RSMN-2030L for chassis mount alternatives or other RSMN variants for different current ratings. Ensure substitute models match the 30 A rating and 250 VAC/DC specifications. Verify compatibility with existing DIN rail profiles and terminal block wiring constraints.
