RSPF2JB100K

Overview

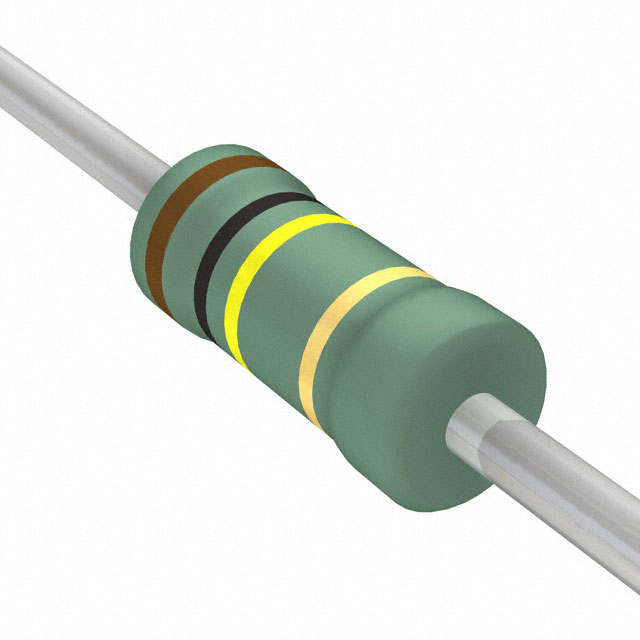

The RSPF2JB100K is a 100 kOhms ±5% 2W axial through-hole resistor manufactured by Stackpole Electronics Inc. It utilizes metal oxide film technology and features a non-flammable, moisture-proof, and safety-rated construction. The component operates within a temperature range of -55°C to 155°C and has a temperature coefficient of -200/+350ppm/°C. Physical dimensions are 4.00mm diameter x 11.00mm length. It complies with RoHS3 standards.

Feature Summary

• Constructed with metal oxide film for durability
• Features non-flammable, moisture-proof, and safety-rated design
• Supports operation in extreme temperatures from -55°C to 155°C

Applications

• General purpose electronic circuits
• Power supply units
• Industrial control systems

Procurement Notes

Verify the specific ordering suffix against official manufacturer documentation to ensure correct packaging and tolerance specifications. Confirm that the requested variant matches the required power rating and physical footprint for your assembly process. Cross-reference the manufacturer part number directly with authorized distributors to avoid counterfeit components. Ensure compliance with project-specific environmental regulations such as RoHS3 before finalizing procurement orders.

Selection Notes

Select this component when a 2W power rating and 100 kOhms resistance value are required for axial mounting. Consider the -200/+350ppm/°C temperature coefficient for thermal stability requirements. Verify that the 4.00mm diameter fits the available PCB space. Choose this series for applications demanding non-flammable and moisture-resistant properties over standard carbon film alternatives.

Part Context

This resistor belongs to the RSPF series of metal oxide resistors from Stackpole Electronics Inc. The series is characterized by high reliability and robust construction suitable for demanding environments. The RSPF2JB100K specifically denotes the 2W power rating and 5% tolerance within this product line.

Replacement Considerations

Public confirmed substitute part numbers include RSMF2FB100K, RSMF2FT100K, RSMF2JB100K, and RSMF2JT100K from Stackpole Electronics Inc.
